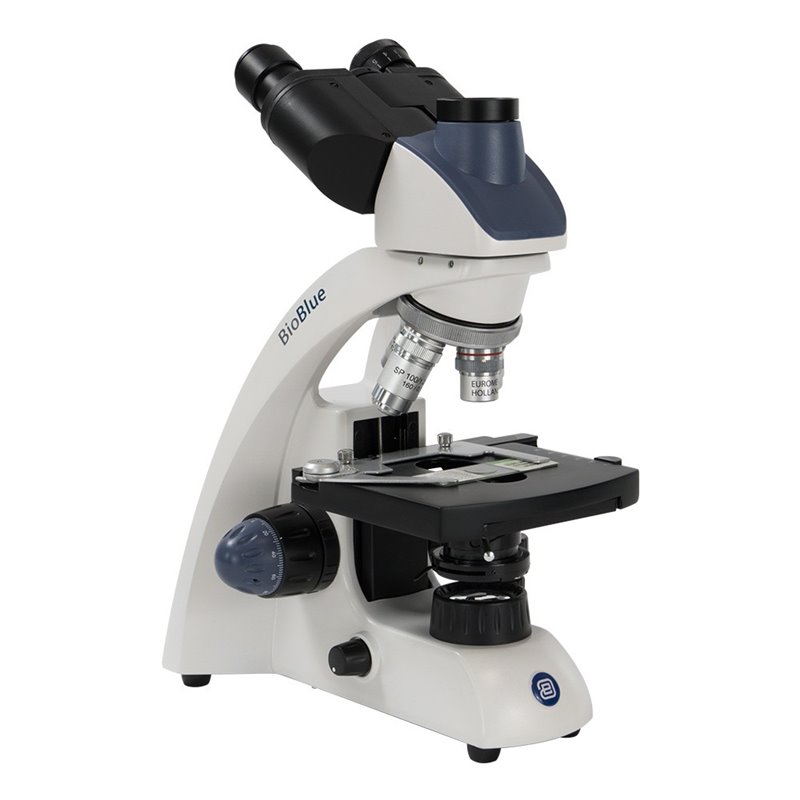

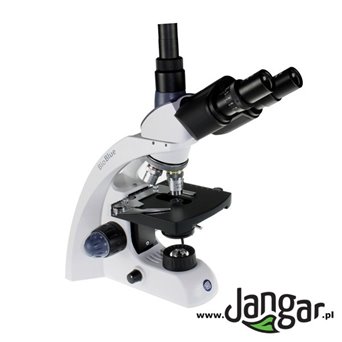

Research microscope 40x-1000x trinocular SP-LED wireless

Research microscope 40x-1000x trinocular SP-LED wireless

A trinocular research microscope with high-end Semi-Plan optics and modern parameters, including energy-efficient, bright LED illumination and dual power options enabling wireless operation (no external power). It features a built-in charger and an external adapter. Main specifications: magnifications from 40x to 1000x; WF10x DIN/18 mm eyepieces and four achromat Semi-Plan DIN objectives: 4x N.A. 0.10, 10x N.A. 0.25, 40x N.A. 0.65, 100x oil N.A. 1.25; rotating 4-position nosepiece; iris diaphragm and Abbe condenser with height adjustment; smooth adjustment of light intensity; high-quality image focus via adjustable coarse and fine (macro- and micrometric) coaxial knobs; specimen protection block to prevent crushing; illumination: LED (1 W); continuous light intensity control; Abbe NA 1.25 condenser with filter holder and height adjustment; blue filter; iris diaphragm; antibacterial coating APL*; stage 130 x 130 mm; mechanical XY stage 70x28 mm; battery operation 3xAA NiMH rechargeable cells, internal charger 100-240 V; detachable mains adapter 230 V; immersion oil 5 ml.

• wide-field WF10x DIN/18 mm eyepieces
• Siedetopf-type ocular head
• ocular head tilt 45°
• trinocular head rotatable 360° (3 ports for camera, device, ...)
• 4-position revolving nosepiece
• achromatic semi-plan DIN objectives: 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65, S100x oil N.A. 1.25
• magnifications: 40x, 100x, 400x, 1000x
• image focusing adjustment: high-quality macro- and micrometric coarse and fine (0.002 mm); coaxial
• crush protection block to prevent crushing the specimen
• illumination: LED (1 W)
• continuous light intensity control
• Abbe condenser NA 1.25 with filter holder and height adjustment
• blue filter
• iris diaphragm
• antibacterial coating APL*
• stage 130 x 130 mm
• mechanical stage for XY plane movement of specimens 70x28 mm
• battery operation 3x AA NiMH rechargeable cells, internal charger 100-240 V
• detachable mains power supply 230 V
• immersion oil 5 ml
• dual power supply: 3 rechargeable batteries powering + mains power supply 100-240 V

5-year warranty.

*APL (ANTIBACTERIAL PROTECTION LAYER) is a revolutionary coating applied to the parts of our microscopes most exposed to contact with microorganisms (including bacteria and mold).
