Wireless Dual-LED School Microscope 40x-1000x

Wireless Dual-LED School Microscope 40x-1000x

Product Description

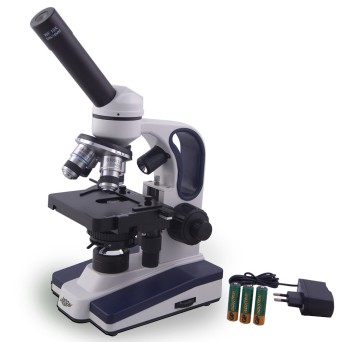

A school microscope with modern specifications, featuring dual LED illumination (economical and bright) and a battery pack (3x AA) enabling more than 100 hours of operation without external power. Additionally, the microscope has an ergonomically shaped carry handle integrated into the stand, a charger and a charging indicator. Primary specifications: magnifications from 40x to 1,000x; eyepiece 10x and four achromat DIN objectives: 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 spring, S100x oil/spring N.A. 1.25; mounted in the revolving nosepiece; built-in iris diaphragm and Abbé condenser with adjustable height; dual LED illumination (transmitted – for all magnifications; reflected – for 400x and 1000x) with adjustable intensity for both transmitted and reflected light. Focusing is achieved with integrated macro- and micrometer-adjustment screws, coaxial, and synchronized. Dimensions: 17.5 x 12.5 x 32.0 cm (H).

Parameters and equipment of the microscope:

• Wide-field eyepiece WF10x / 18 mm
• Eyepiece tilt: 45°
• Rotatable monocular head 360°
• 4-hole revolving nosepiece
• Achromatic DIN objectives: 4x N.A. 0.10; 10x N.A. 0.25; S40x N.A. 0.65 spring; S100x oil/spring N.A. 1.25
• Magnifications: 40x, 100x, 400x, 1000x
• Focusing adjustment: macro- and micrometer screws, coaxial, integrated
• Protective stop to prevent crushing the specimen
• LED illumination: bottom (transmitted) and top (reflected) with adjustable light intensity
• Abbe condenser N.A. 1.25 with adjustable height
• Iris diaphragm with filter holder
• Mechanical stage for XY movement of specimens
• Ergonomic carry handle integrated into the stand
• Power: battery-powered (3x AA rechargeable; included) 1300 mA and from mains
• Detachable 230V power supply
• Charging indicator: YES
• Immersion oil 5 ml

5-year warranty.
