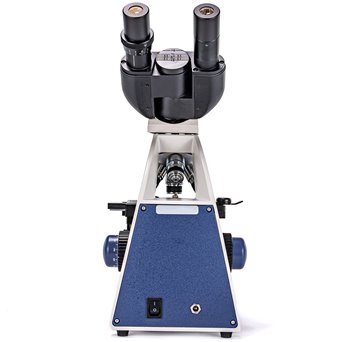

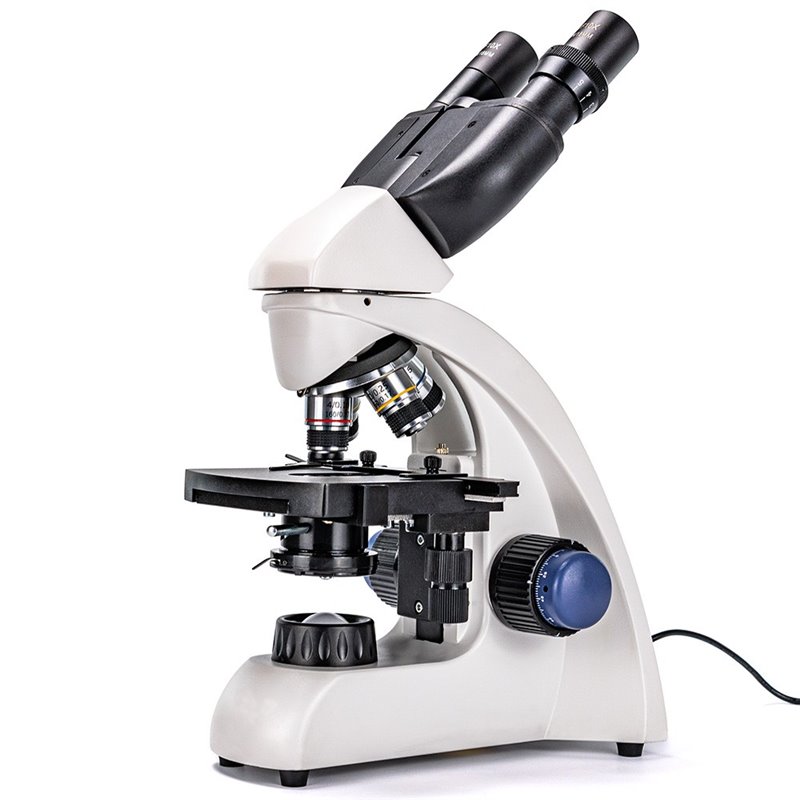

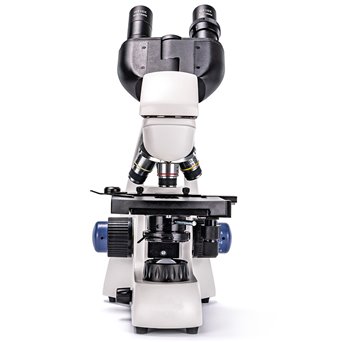

LED Research Microscope 40x-1000x Binocular – Cordless/Wired

LED Research Microscope 40x-1000x Binocular – Cordless/Wired

A research microscope with high‑performance and modern specifications, including energy‑efficient, bright LED illumination (daylight color) and a battery enabling operation without external power, along with parfocal achromatic objectives. Primary parameters: magnifications from 40x to 1000x; WF10x DIN/18 mm eyepieces with diopter adjustment on the left eyepiece; and 4 achromat and parfocal objectives: 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65, S100x‑oil N.A. 1.25, screwed into the revolver turret; built‑in iris diaphragm and Abbego condenser with height adjustment to focus light rays. Smooth regulation of light intensity. Focusing is performed with high‑quality integrated coarse‑ and fine‑adjustment (macro‑ and micro‑) coaxial knobs.

Microscope Parameters and Equipment

• 360° rotating binocular head
• Eyepieces wide‑field WF10x DIN/18 mm with diopter adjustment on the left eyepiece
• Tube length: 16 cm
• Eyepiece tilt: 45°
• 4‑hole revolver turret
• DIN achromatic parfocal objectives 35 mm: 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65, S100x‑oil N.A. 1.25
• Magnifications: 40x, 100x, 400x, 1000x
• Image focusing: high‑quality macro‑ and micrometric screw; coaxial adjustment of focus knobs sensitivity
• Specimen protection lock to prevent squashing the sample
• Illumination: LED (1W, daylight color) with smooth intensity regulation
• Abbe condenser N.A. 1.25 with height adjustment mechanism
• Iris diaphragm
• Antibacterial coating APL*

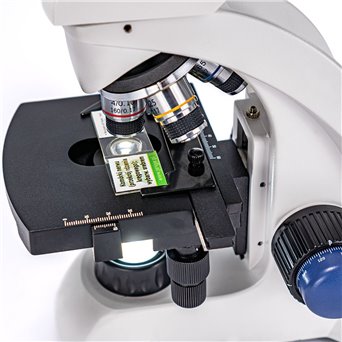

• Stage 115x100 mm with mechanical stage 30x70 mm
• Power: battery‑powered (rechargeable batteries: 3 x AA; 5.5V/300mA) and mains power (230V).
• Detachable 230V power supply cable length 1.8 m
• Immersion oil 5 ml

*APL (ANTI-BACTERIAL PROTECTION LAYER) is a revolutionary coating applied to the parts of our microscopes most exposed to contact with microorganisms (including bacteria and mold).
