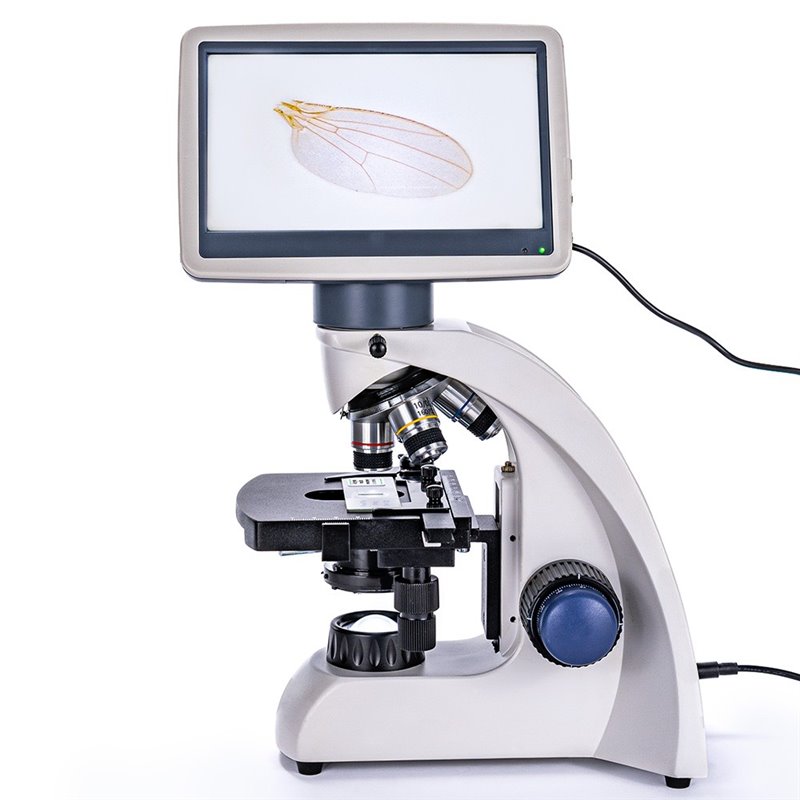

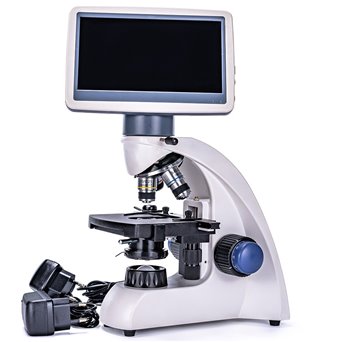

Biological Microscope 400x-LED with 7" LCD Screen and Mechanical Stage

Biological Microscope 400x-LED with 7" LCD Screen and Mechanical Stage

The microscope offers magnifications from 40x to 400x and is equipped with a 7‑inch LCD screen and three achromatic objectives: 4x, 10x, S40x, mounted on a 4-position revolving nosepiece.

Illumination is provided by LED light (1 W NeoLED - low power consumption) with adjustable light intensity.

The Abbe condenser with iris diaphragm regulates the amount of light passing through the specimen.

Focusing is adjusted with two integrated knobs: coarse and fine (macro- and micro-), integrated and with locking.

The microscope is powered by a detachable power supply (included).

The 7" LCD screen microscope is an excellent, modern teaching aid - it enables quick verification by the teacher during a lesson to confirm whether a student has found the correct part of the specimen, making it ideal for group work (students working in groups) or demonstrations by the teacher.

Specifications and equipment of the microscope:

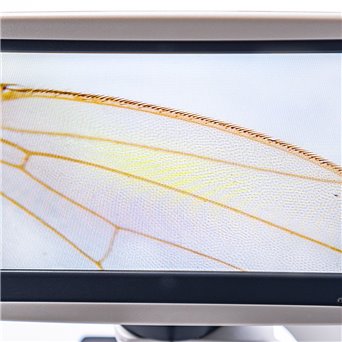

• IPS 7" LCD screen
• Screen resolution: 1920 x 1080 HD @ 30 fps
• Photo and video recording directly to a micro SD card (4 GB – included)
• Image resolution up to 1844 x 1080, JPEG format
• Video resolution: 1280x720 .AVI
• 4-position revolving nosepiece
• Achromat objectives: 4x/0.10, 10x/0.25, S40x/0.65
• Abbe condenser NA 1.25
• Iris diaphragm with filter holder
• Coarse and fine focus knobs (macro- and micro-), integrated, with lock
• Anti-crush protection (prevents contact between the objective and the specimen)
• Magnifications: 40x, 100x, 400x
• Illumination: LED 1 W (color temperature 6,300 K)
• Adjustable light intensity
• Stage 115x100 mm with a mechanical stage 55x20 mm
• Optical element material: glass
• Tubing and base material: aluminum castings
• Antibacterial protective coating APL*
• Power for the microscope: battery-powered (rechargeable batteries) – external charger/power supply 230V included
• LCD screen power: 230V power supply included
• Dust cover

*APL (ANTI-BACTERIAL PROTECTION LAYER) is a revolutionary coating applied to the parts of our microscopes most exposed to contact with microorganisms (including bacteria and mold).
