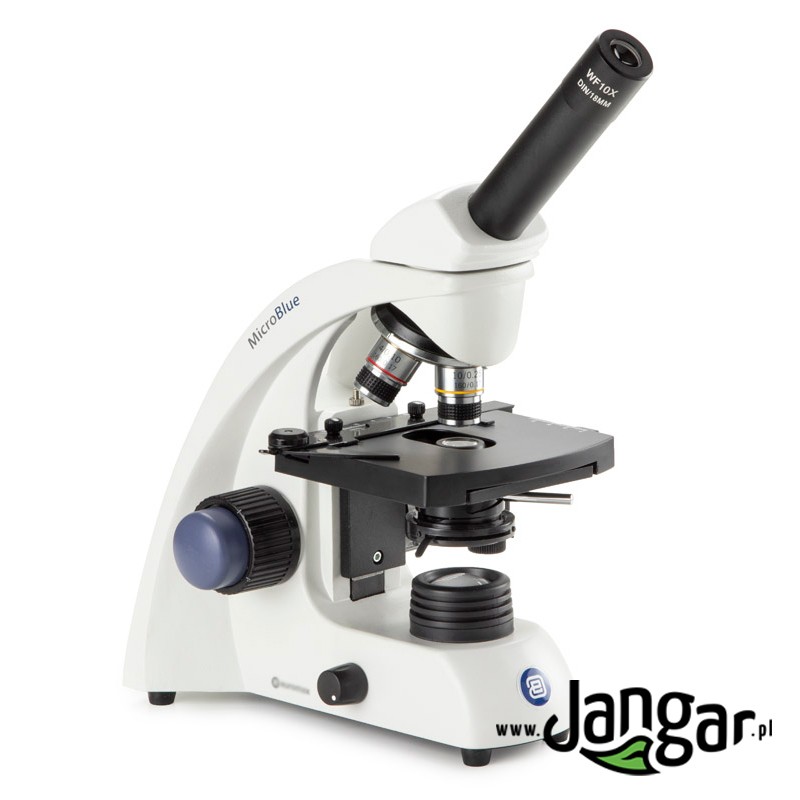

LED 400x School Microscope (Cordless) 1W with XY Stage

LED 400x School Microscope (Cordless) 1W with XY Stage

Product Description

A school-grade microscope with high-end and modern specifications, including energy-efficient LED illumination (daylight white) and a rechargeable battery pack that allows operation without external power, and parfocal achromatic objectives. Core specifications: magnifications from 40x to 400x; wide-field eyepiece WF10x DIN/18 mm; and 3 parfocal achromatic objectives DIN: 4x, 10x, 40x (spring-loaded), and 100x screw-in into the revolving nosepiece; built-in iris diaphragm and an Abbe condenser with adjustable height focusing light rays. Smooth adjustment of illumination intensity. Image sharpness is set using high-quality integrated coarse and fine adjustment knobs (macro and micro) with coaxial adjustment of the focus control.

Parameters and equipment of the microscope:

• 360° rotatable monocular head
• wide-field eyepiece WF10x DIN/18 mm
• tube length: 16 cm
• eyepiece tilt: 45°
• 4-hole revolving turret
• 35 mm parfocal achromatic DIN objectives: 3x NA 0.10, 10x NA 0.25, S40x NA 0.65
• magnifications: 40x, 100x, 400x
• focusing adjustment: high-quality macro- and micrometric screw (0.002 mm); coaxial ability to adjust focus knobs
• crush protection guard to prevent crushing the specimen
• illumination: LED (1W, daylight white) with smooth adjustment of light intensity
• Abbe condenser NA 1.25 with height adjustment mechanism
• iris diaphragm
• antibacterial coating APL*
• stage 115x100 mm with mechanical stage 55x20 mm
• power supply: battery-powered (rechargeable batteries: 3 x AA; 5.5V/300mA) and mains power (230V).
• detachable 230V power adapter length 1.8 m
• immersion oil 5 ml

*APL (ANTIBACTERIAL PROTECTION LAYER) is a revolutionary coating applied to the parts of our microscopes that are most exposed to contact with microorganisms (including bacteria and mold).
