Product Description

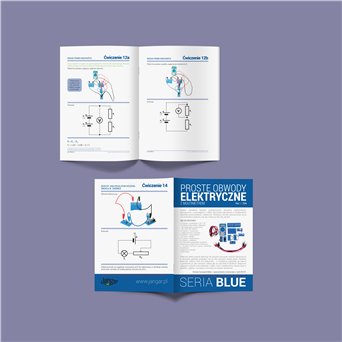

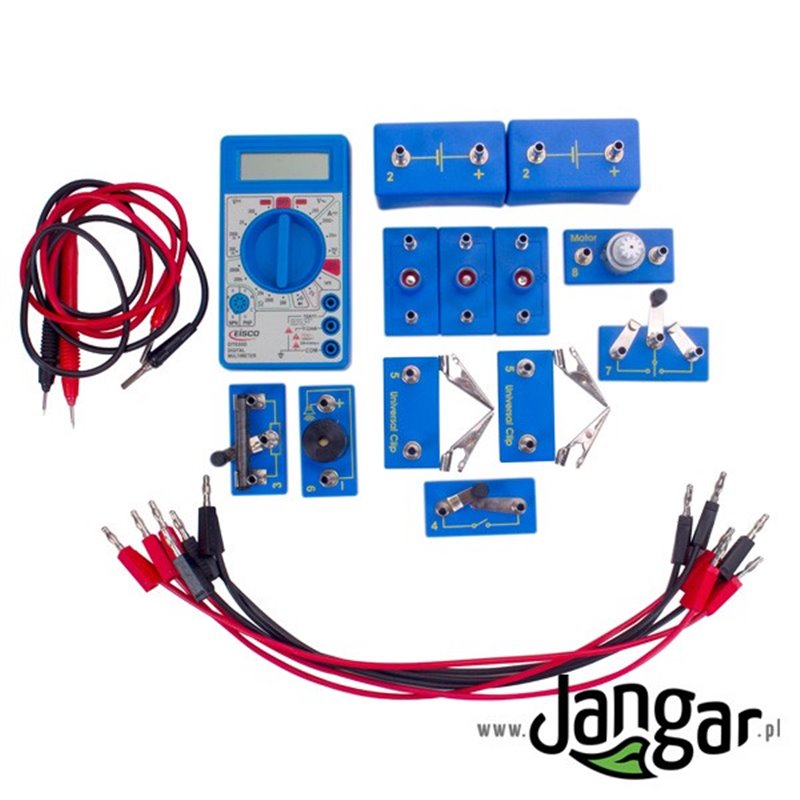

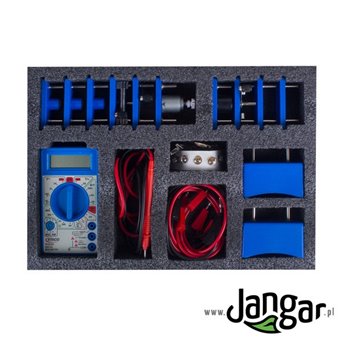

Set for building basic electrical circuits, including series and parallel circuits, as well as testing conductors and insulators integrated into the constructed circuit. The circuit elements are mounted on 10 blue boards (3 bulbs - 1.5V and 3V, 2 resistors, a variable resistor – rheostat, 2 types of switches, a buzzer, a motor), so that the entire circuit is visible. The set includes banana plug jumper wires - 6 pieces, red and black. Electrical connections are made quickly by inserting the banana plug ends into special sockets located on both sides of each board. Battery power (R20 batteries, not included) – in the set, 2 blue battery housings with sockets on both sides, as on the other boards. In addition, spare bulbs and a multimeter are included. The whole kit, together with the multimeter, is delivered in a special foam tray with cutouts sized to fit the elements, which facilitates removing and storing the set components. The educational set is delivered with a detailed instruction manual describing specific connections and their analysis.

Ready exercises included in the set:

• Series connection of power sources
• Parallel connection of power sources
• Series connection of bulbs
• Parallel connection of bulbs
• Electrical circuit with a bulb
• Switch as a component of an electrical circuit
• Buzzer as a component of an electrical circuit
• Series connection of resistors
• Parallel connection of resistors
• Motor in the electrical circuit
• Practical study of Ohm's law
• Practical study of Kirchhoff's first law
• Practical study of Kirchhoff's second law

The set is compatible with other BLUE series sets.
