Energy Forms (Including Renewable) and Their Applications – Experimental Kit

Energy Forms (Including Renewable) and Their Applications – Experimental Kit

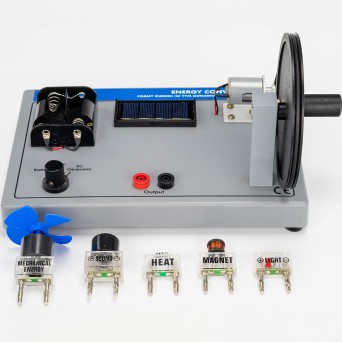

The kit is designed for experimental visualization of three forms of energy and five distinct ways these energies can be utilized. The energies presented in the kit are: solar energy - photovoltaic cell; mechanical energy - hand-crank generator; and galvanic cell (battery) for comparison. Each energy form can be depicted using five interchangeable "end effects" of energy conversion, namely: a small fan with a motor (motion), a buzzer (sound), an LED (light), a resistor (heat), and an electromagnet (magnetism).

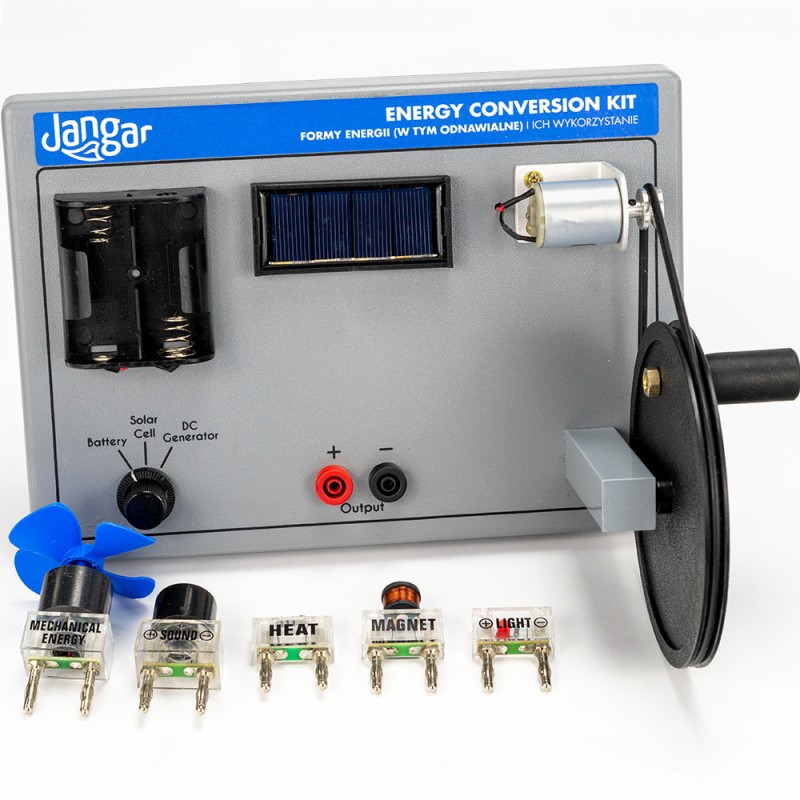

All elements of the kit are mounted on a common base plate, which also features a knob to select one of the three energy forms. All "end effects" are interchangeable, equipped with contacts and plugged into sockets on the base in the chosen order. The overall dimensions of the educational aid are 25 x 20 x 17 cm.
