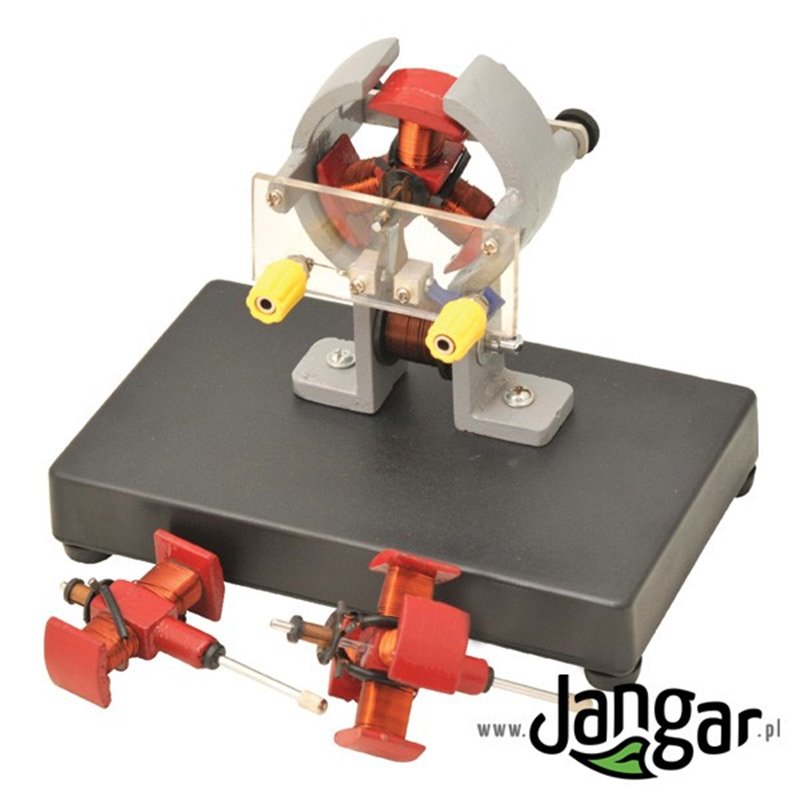

The DC motor operating model is the simplest direct current motor model (4.5–9 V) with three windings (2-, 3- and 4-pole) and copper windings. The magnetic field is produced by a removable bar magnet. The model features an open construction, with its components clearly visible. A disk-type commutator is built-in, and the external connection to the brushes (phosphor bronze) is via 4-mm sockets. Dimensions: 11 x 8 x 15 cm.

Technical specifications

• Voltage range: 4.5–9 V
• Three windings with 2-, 3- and 4-pole configurations
• Copper windings
• Magnetic field generated by removable bar magnet
• Open construction with clearly visible components
• Disk-type commutator
• External brush connections (phosphor bronze) via 4 mm sockets
• Dimensions: 11 x 8 x 15 cm
