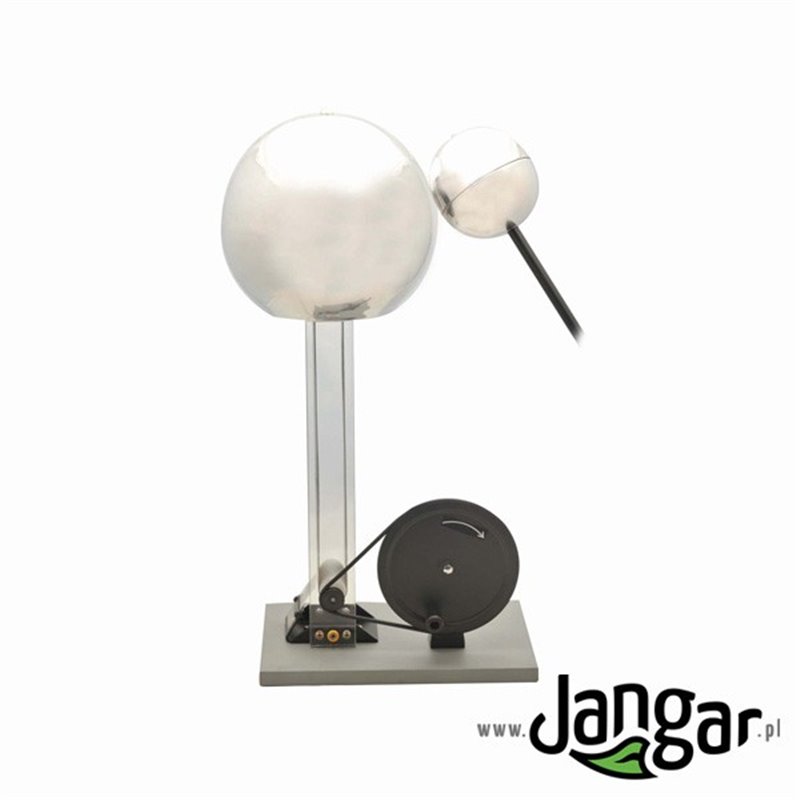

Van de Graaff Generator with a Spherical Electrode and Manual Drive

Van de Graaff Generator with a Spherical Electrode and Manual Drive

Designed for classroom demonstrations of electrostatics, this Van de Graaff generator features a full spherical electrode (not a mesh) with electrode diameters of 15 cm and 10 cm respectively.

The discharging spherical electrode is not integrated into the base; it has an insulated handle and 4-mm connection sockets. The drive belt is made of silicone rubber with a high level of insulation.

Maximum voltage on the spherical electrode: 200 kV; spark length: 60 mm! This model is powered manually by a hand crank.

Key features

• Full spherical electrode (not a mesh) for clear electrostatics demonstrations
• Electrode diameters 15 cm and 10 cm
• Discharging spherical electrode not integrated into the base with insulated handle and 4 mm connection sockets
• Silicone rubber belt with high insulation
• Maximum electrode voltage of 200 kV
• Spark length up to 60 mm
• Manual hand-crank powered operation
