Rabel MIE-RB-30C Multimeter

Rabel MIE-RB-30C Multimeter

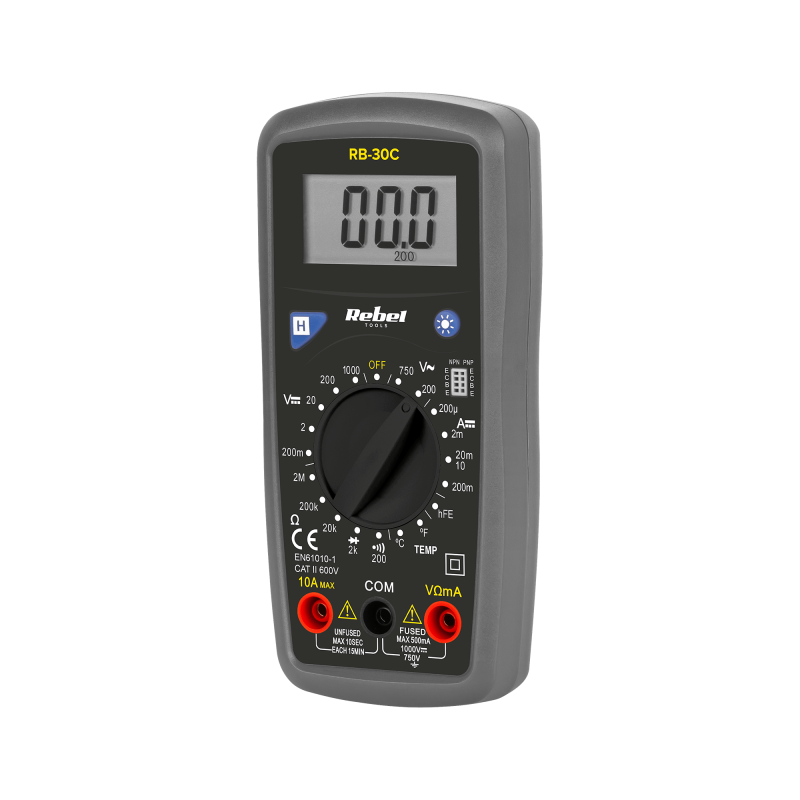

The universal multimeter REBEL RB-30C is a versatile instrument that excels for a wide range of electrical and electronic measurements.

Measurement ranges

• DC voltage: 200 mV, 2 V, 20 V, 200 V, 1000 V with an accuracy of ± (1% + 5)
• AC voltage: 200 V, 750 V with an accuracy of ± (2% + 10)
• DC current: 200 µA, 2 mA, 20 mA, 200 mA, 10 A with an accuracy of ± (2% + 10)
• Resistance: 200 Ohm, 2 kOhm, 20 kOhm, 200 kOhm, 2 MOhm with an accuracy of ± (1% + 4)
• Diode test
• hFE transistor test
• Continuity check
• Temperature measurement

General features

• Backlit display
• Manual range switching
• Fold out stand
• Freeze last reading
• Low battery indicator
• Automatic polarity
• Sampling rate 2 times per second
• Maximum reading 1999
• Display size 45 x 21 mm
• Operating temperature 0°C to 40°C at humidity < 80%
• Storage temperature -10°C to 50°C at humidity < 85%
• Power supply 2x AAA batteries
• Dimensions 160 x 76 x 32 mm
• Weight 150 g

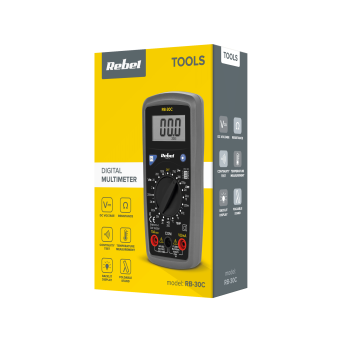

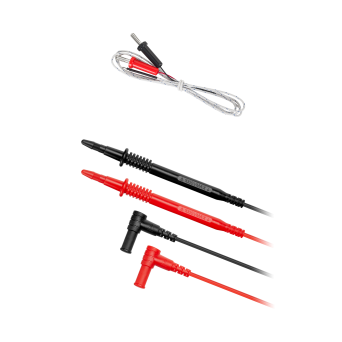

• Included in the set: multimeter, test leads, K-type thermocouple, instruction manual
