Adjustable Inclined Plane with Roller and Precision Protractor

Adjustable Inclined Plane with Roller and Precision Protractor

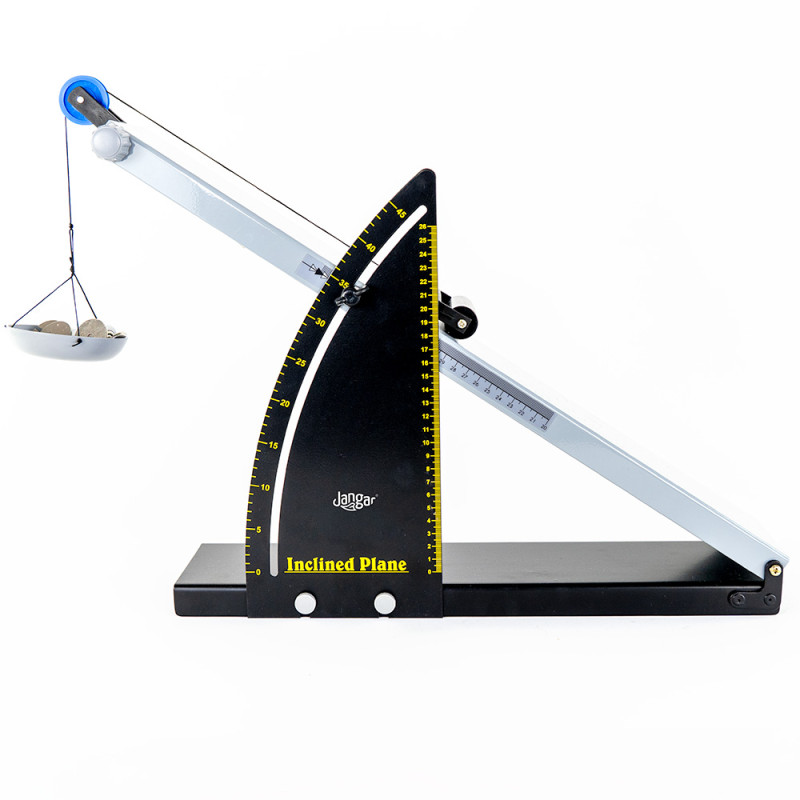

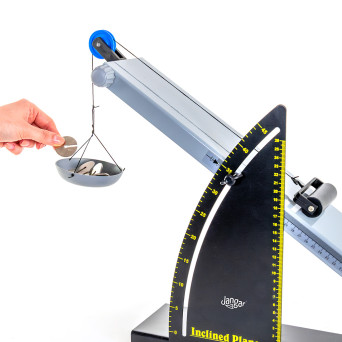

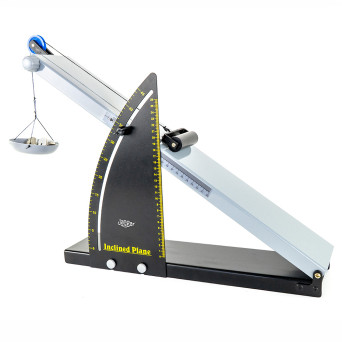

An adjustable inclined plane with roller and precision protractor designed for experiments in the field of mechanics. It enables demonstration of the relationship between the angle of inclination and the motion of a body, as well as analysis of the forces acting on an object moving along the plane.

The stable metal construction and a large, easy-to-read arc protractor allow precise measurement of the angle of inclination, while smooth adjustment in the range of 0-45° enables accurate setup of experimental conditions.

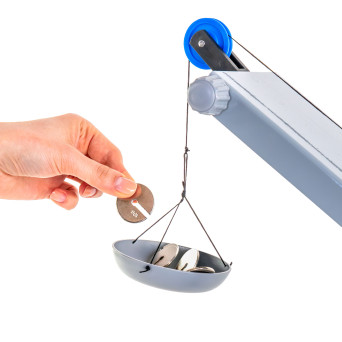

The inclined plane is equipped with a linear scale for displacement measurements. The set also includes a roller, a pulley and a weight pan, allowing a wide range of experiments - from determining the coefficient of friction to analyzing uniformly accelerated motion.

Technical parameters:

• angle adjustment range: 0-45°
• plane length: approx. 600 mm
• plane width: approx. 110 mm
• built-in precision arc protractor
• linear scale for displacement measurement
• pulley
• roller
• weight pan

Applications:
- study of static, kinetic and rolling friction
- determination of the coefficient of friction
- motion analysis on an inclined plane
- demonstrations of dynamics principles
