Neulog: Graphical Display — Standalone Measurement and Visualization Module

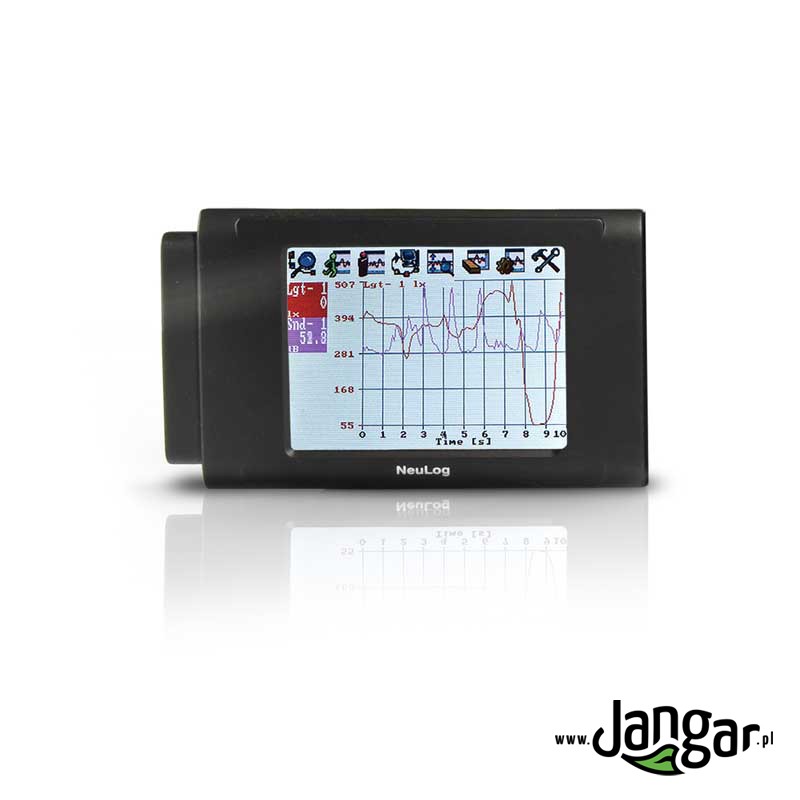

The Neulog Graphical Display is a compact module designed to conduct measurements without a computer. It displays sensor values in both digital and graphical forms, enabling immediate analysis in the field or classroom.

• Displays values measured by sensors in digital and graphical forms.
• Allows configuring parameters for individual sensors, such as the duration of the experiment and sampling intervals.
• Supports up to five sensors connected to the graphical module.
• Features a colorful touchscreen with simple, intuitive operation.

Main features of the Graphical Display Module

• Automatically recognizes connected sensors
• Communicates simultaneously with all connected sensors
• Controls and sets the measurement range and units for each sensor; supports displaying up to five measured quantities in real time
• Automatically powers off to extend battery life

The graphical display module connects to a sensor or a sensor chain, powered from the battery module. It processes and analyzes the measured values. Remote connection is also possible via the wireless communication module. The graphical display has its own software, enabling processing and analysis of data without a computer or network. This is especially useful for field experiments.
