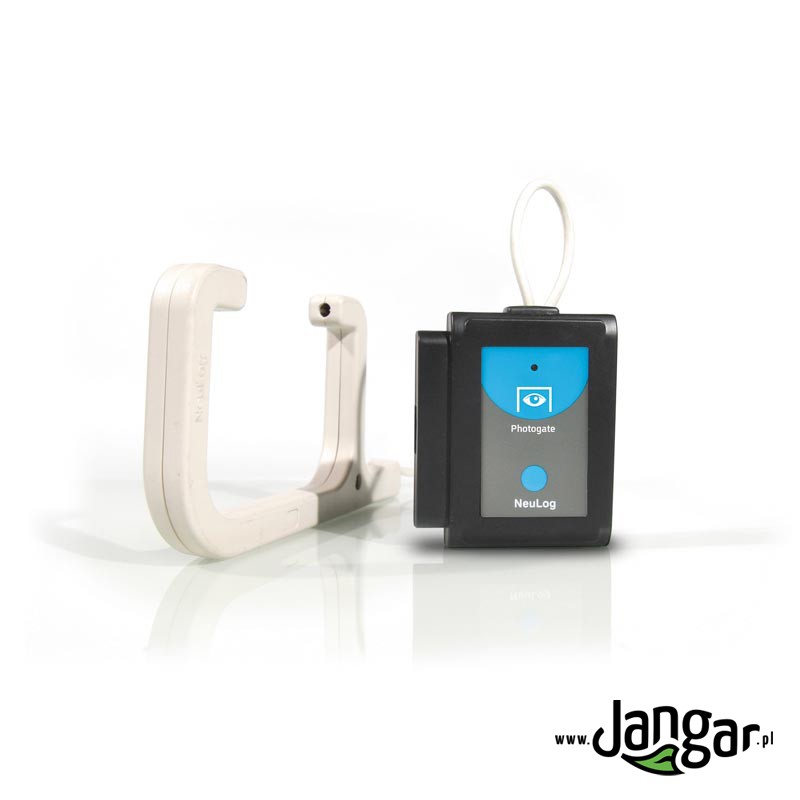

NeuLog: Photogate

NeuLog Photogate — Educational Motion Sensor for Experiments

• Allows investigating various types of motion in five operating modes of time, velocity, and acceleration.
• Measurements can be taken using one or two photogates.
• Supports investigating various types of motion in five operating modes of time, velocity, and acceleration.

The sensor offers five operating modes:

1. Time and velocity mode
2. Acceleration with a single photogate
3. Acceleration with two photogates
4. Velocity and momentum with two photogates
5. Graphical mode

For proper operation, a NeuLog: USB Module is required (sold separately!) or one of our ready-made sets MOD56 and MOD57 (sold separately!).

Before purchasing the sensor, we recommend reviewing the operation and configuration methods of the NeuLog Measurement System.

Example configurations of modules required for the sensor to operate:

Specification: Experiment duration: 50 milliseconds to 31 days
