Optical bench with full equipment

Optical bench with full equipment for classroom experiments

Optical bench with full equipment

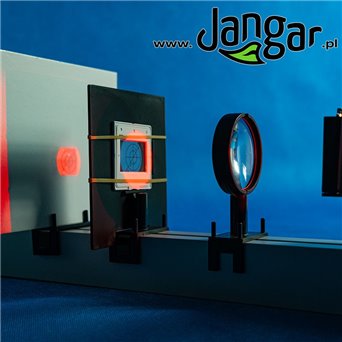

The optical bench with full equipment consists of an anodized aluminum optical bench of 120 cm in length with a sliding scale of 100 cm on the side, mounting elements for optical components and other items essential for conducting all basic and advanced experiments, such as a platform, lens mounting clamps, a prism table, plates with holes and guides, a device for producing rays (with built-in mirrors on hinges, a lens, side and front guides and a light source) and a rich range of optical accessories, such as: plano‑convex, convex, concave and double convex lenses, diaphragms with narrow and wide apertures, flat and curved mirrors, color filters and color charts, a 3‑color mixing filter, a white screen, prisms at various angles, including prism blocks, slides with holes of various diameters, with letter F, with a scale and discs. In total 66 basic elements are listed below. The set does not include a power supply. Laboratories without a power supply can purchase one separately (power supply parameters: 3A, 12V).

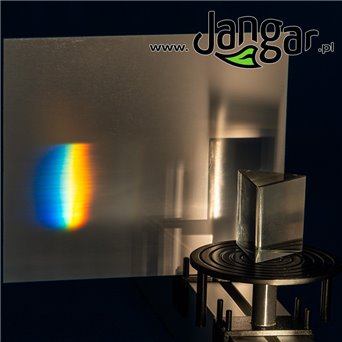

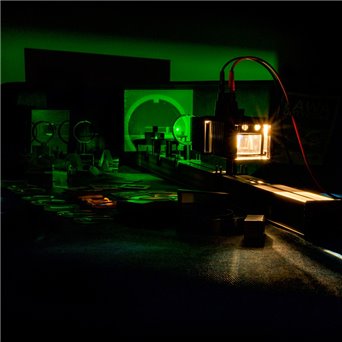

The very rich optical equipment of the set and its completeness enable performing a number of classical optics experiments, as well as experiments in other fields related to optics. Thus, using the set we will demonstrably present concepts such as: shadow and penumbra, refraction of light in a prism, image and reflection of light in mirrors, convergence and divergence of lenses, focal points of converging lenses, but also myopia of the human eye and its correction. In general, the range of school experiments that can be carried out with the Optical Bench can be divided into 4 parts: reflections, refractions, colors, others.

In the manual there are (described and drawn) more than 30 experiments, covering, among others: light rays, mirrors, multiple reflections, parallax, focal length, aberrations, reflective surfaces, lenses and their focal lengths, radii of curvature, color mixing, spherical magnifications, shadows.

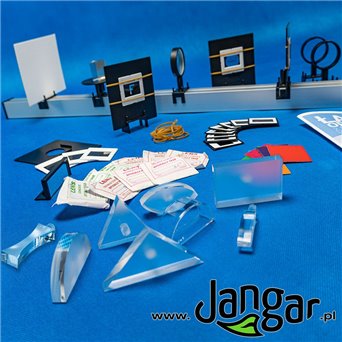

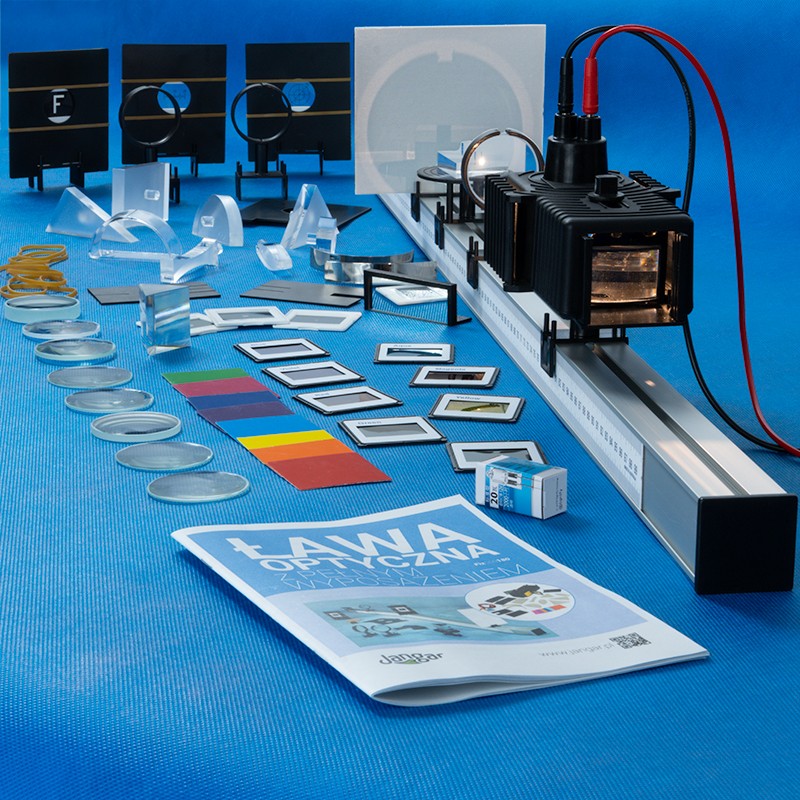

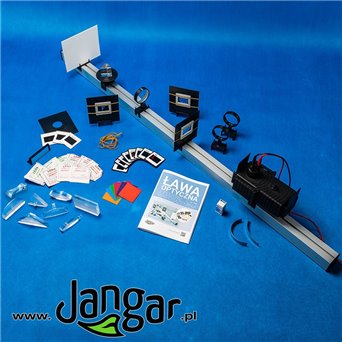

COMPONENTS (total 66 elements: I + II):

I. Optical bench (34 elements)

• Optical bench made of anodized aluminum, length 120 cm, scaled (100 cm) with a sliding scale
• Platform for mounting Device for generating rays
• Mounting holder for Device for generating rays (with a cylindrical projection and screw)
• Universal guides…7 pcs.
• Round prism table /slidable into universal guide/
• Round lens holder (diameter 50 mm) /slidable into universal guide/…3 pcs.
• Plate with an opening for mounting lenses, frames with slides, diaphragms and color screens as well as a white screen /placed in universal guide/…4 pcs.
• White cardboard screen /placed in universal guide/
• Slide (in frame) with hole of 3 mm diameter
• Slide (in frame) with hole of 5 mm diameter
• Slide (in frame) with hole of 8 mm diameter
• Slide (in frame) with the letter F
• Slide (in frame) with a scale 0-20 units
• Slide (in frame) with a circular disc 5 and 10 mm
• Convex lens, diameter 50 mm, focal length 100 mm…2 pcs
• Convex lens, diameter 50 mm, focal length 200 mm…2 pcs
• Convex lens, diameter 50 mm, focal length 300 mm…2 pcs
• Concave lens, diameter 50 mm, focal length 100 mm
• Concave lens, diameter 50 mm, focal length 200 mm
• Concave lens, diameter 50 mm, focal length 300 mm
• Rubber bands…12 pcs.
• Equilateral prism
• Instruction for mounting elements

II. Ray production set with optical equipment (32 elements):

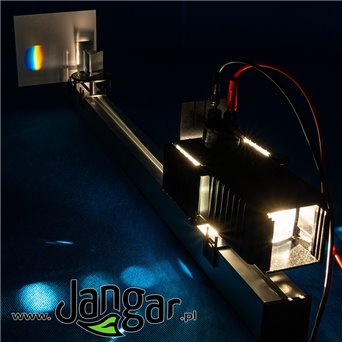

• Device for producing rays (with built-in mirrors on hinges, a lens, side and front guides and a light source)
• Banana leads (4 mm) – 2 pcs.
• Rectangular prism block
• Prism with angles 45°-45°-90°
• Prism with angles 60°-30°-90°
• Prism with angles 60°-60°-60°
• Semi‑circular prism block
• Double convex lens (wide)
• Double convex lens (narrow)
• Double concave lens
• Mask plate (diaphragm) double‑sided with narrow slits (1 and 2)
• Mask plate (diaphragm) double‑sided with wide slits (1 and 3)
• Flat mirror (on a stand)
• Mirror with semi‑circular curvature
• Parabolic curvature mirror
• Set of 8 color filters: red, blue, green, yellow, magenta, cyan, violet, and 3‑color mixing
• Set of 8 color reference cards: red, magenta, orange, yellow, green, cyan, blue, violet
• Spare 12V 20W bulb
• Experiment description booklet
