Physics in a Briefcase 5: Electricity Part 1

Physics in a Briefcase 5: Electricity Part 1

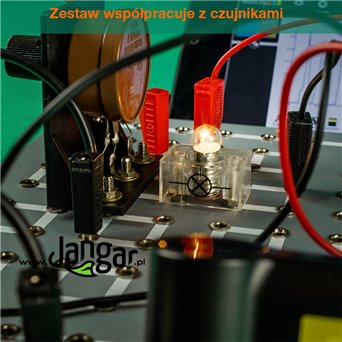

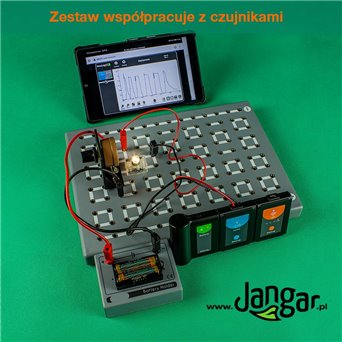

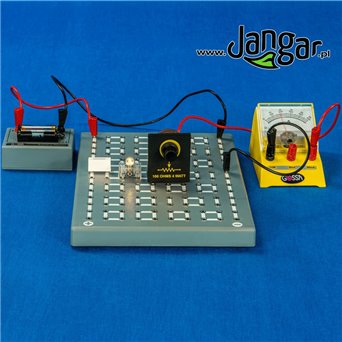

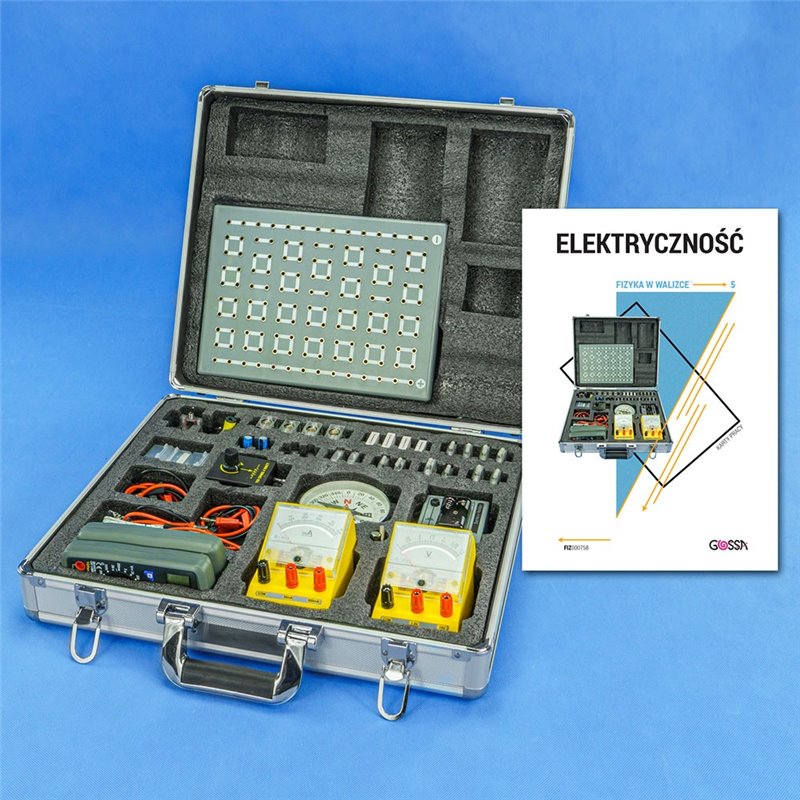

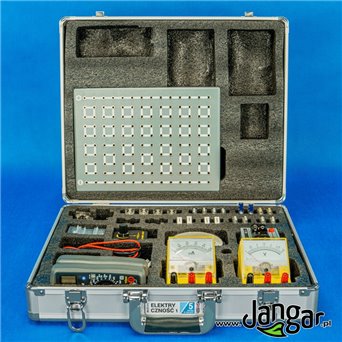

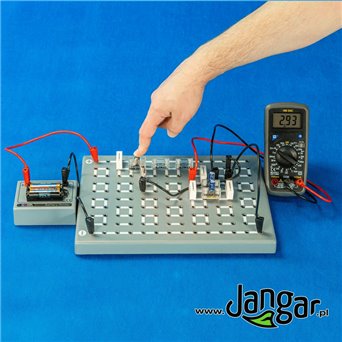

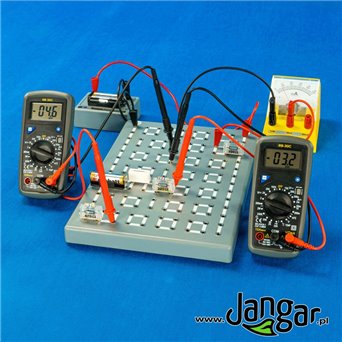

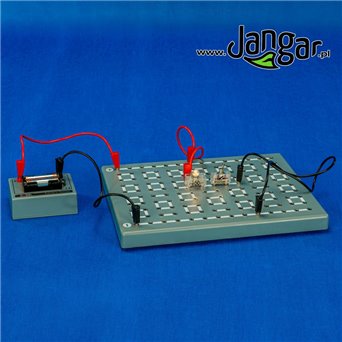

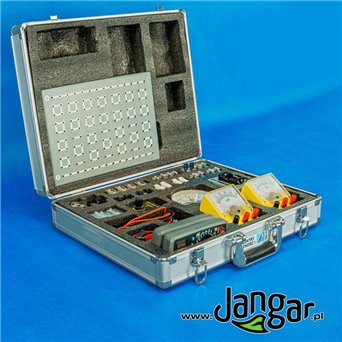

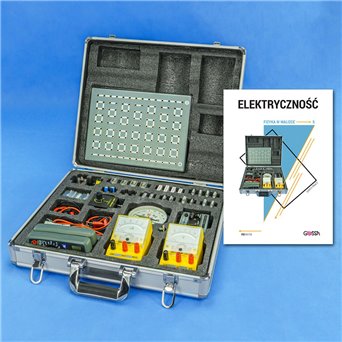

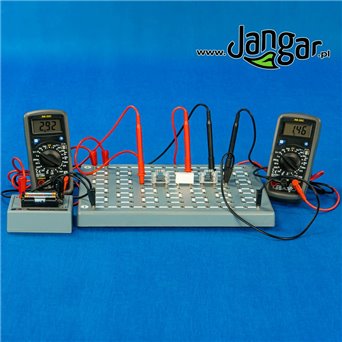

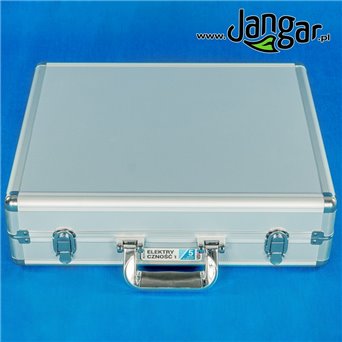

The Electricity Part 1 kit from the Physics in a Briefcase series enables conducting a dozen or so electricity-related experiments in accordance with the accompanying worksheets included in the instruction manual. The kit allows quick and easy circuit assembly by using the mounting board for electrical circuits and the components included in the set. All components are housed in an aluminum case lined with a rigid foam insert with cutouts matched to the items in the set. Sample experimental configurations. This electricity experiments kit is well suited for numerous experiments during physics lessons. Dimensions: 47 cm x 13.5 cm x 40 cm. The kit is compatible with Neulog sensors.

Experiments (worksheets):

1. Simple electrical circuit with switches.
2. Using a voltmeter.
3. Voltage divider.
4. Using an ammeter.
5. Potentiometer as a variable resistor.
6. Ohm's law and the voltammetric method.
7. Resistance in a series circuit.
8. Resistance in a parallel circuit.
9. Kirchhoff's First Law.
10. Kirchhoff's Second Law.
11. Electrical capacitance in a series circuit.
12. Electrical capacitance in a parallel circuit.
13. RC circuit – charging a capacitor through a resistor.
14. RC circuit – discharging a capacitor through a resistor.
15. Magnetic field around a conductor.
16. Magnetic field around a coil.

Set contents:
1 x Mounting board for electrical circuits;
1 x Analog voltmeter, 0-15 V, 0-1.5 V;
1 x Milliammeter 0-500 mA, 0-50 mA;
1 x Cylindrical magnet;
4 x Resistors 100 Ω;
2 x Resistors 220 Ω;
2 x Resistors 470 Ω;
2 x Resistors 1 kΩ;
2 x Resistors 4.7 kΩ;
2 x Resistors 10 kΩ;
1 x Potentiometer 100 Ω;
2 x Capacitors 1000 μF;
4 x Lamp holders E10;
4 x Clips;
1 x Two-battery holder;
1 x Single-battery holder;
1 x Inductor 10 mH;
1 x Compass;
1 x Tilt toggle switch;
1 x Pushbutton switch;
4 x Lamps E10 3.5V;
4 x Lamps E10 6V;
4 x Lamps E10 12V;
1 x Ferromagnetic core (steel hex bolt and nut);
2 x Banana plug leads 25 cm, red;
2 x Banana plug leads 25 cm, black;
1 x Banana plug lead 50 cm, red;
1 x Banana plug lead 50 cm, black;
2 x Multimeters;
1 x Instruction manual with worksheets
