Physics in a Case 5 and 6: Electricity

Physics in a Case 5 and 6: Electricity

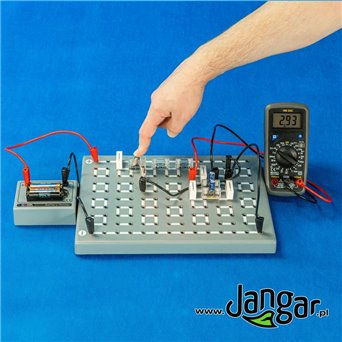

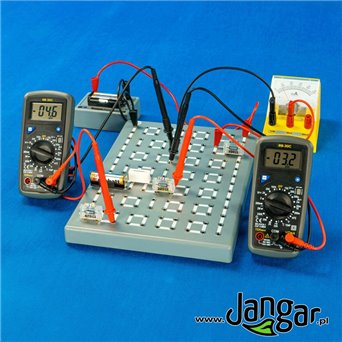

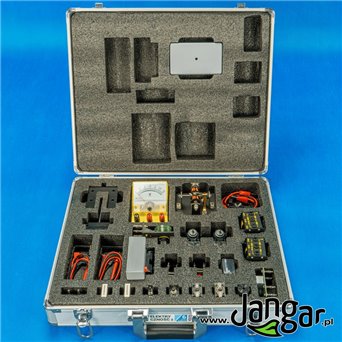

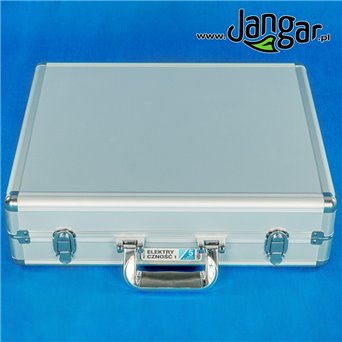

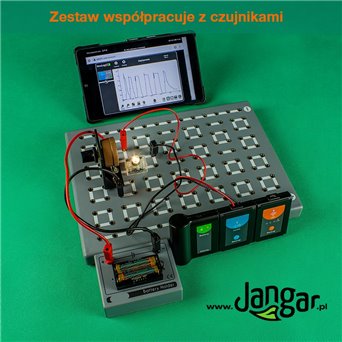

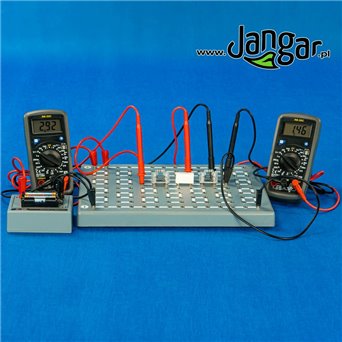

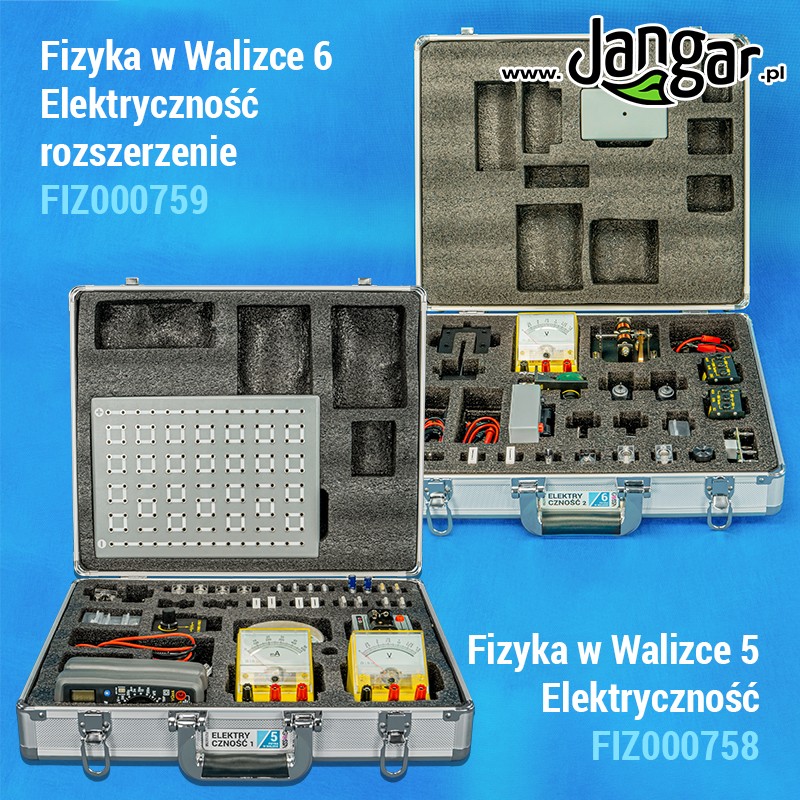

Set of 2 suitcases from the Physics in a Case series enabling the execution of several electricity-related experiments in accordance with the accompanying worksheets included in the instruction manual. The set allows quick and easy circuit assembly by using the mounting board for electrical circuits and components included in the set. All components in the set are housed in 2 aluminum suitcases lined with rigid foam, with cutouts matched to the components of the kit. Sample experimental circuits. Suitcase dimensions: 47 cm x 13.5 cm x 40 cm. The set works with Neulog sensors.

Experiments (worksheets)
Physics in a Case 5: Electricity Part 1:

1. Simple electric circuit with switches.
2. Using a voltmeter.
3. Voltage divider.
4. Using an ammeter.

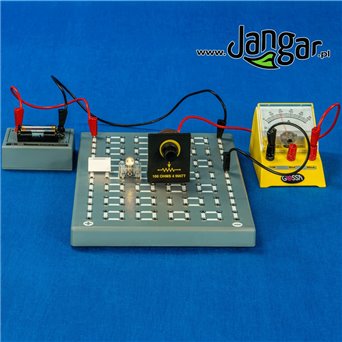

5. Potentiometer as a tunable resistor.
6. Ohm's law and the voltammetric method.
7. Resistance in a series circuit.
8. Resistance in a parallel circuit.
9. Kirchhoff's first law.
10. Kirchhoff's second law.
11. Electrical capacitance in a series circuit.
12. Electrical capacitance in a parallel circuit.
13. RC circuit - charging a capacitor through a resistor.
14. RC circuit - discharging a capacitor through a resistor.
15. Magnetic field around a conductor.
16. Magnetic field around a coil.

Physics in a Case 6: Electricity Part 2:

1. Step-up transformer.
2. Step-down transformer.
3. Direct current motor.
4. Two motors connected in series.
5. Two motors connected in parallel.
6. Motors connected together.
7. Single two-position switch.
8. Two single-pole double-throw switches.
9. Relay.

SET CONTENTS

Physics in a Case 5: Electricity Part 1: • 1 x Mounting plate for electrical circuits; • 1 x Milliammeter 0-500 mA, 0-50 mA; • 1 x Analog voltmeter, 0-15 V, 0-1.5 V; • 1 x Cylindrical magnet; • 4 x Resistor 100 Ω; • 2 x Resistor 220 Ω; • 2 x Resistor 470 Ω; • 2 x Resistor 1 kΩ; • 2 x Resistor 4.7 kΩ; • 2 x Resistor 10 kΩ; • 1 x Potentiometer 100 Ω; • 2 x Capacitor 1000 μF; • 4 x Lamp holder for E10 bulb; • 4 x Clip; • 1 x Container for two batteries; • 1 x Holder for a single battery; • 1 x Inductor 10 mH; • 1 x Compass; • 1 x Tilt switch; • 1 x Push-button switch; • 4 x Lamp E10 3.5 V; • 4 x Lamp E10 6 V; • 4 x Lamp E10 12 V; • 1 x Ferromagnetic core (steel hexagonal screw and nut); • 2 x Banana plug leads 25 cm, red; • 2 x Banana plug leads 25 cm, black; • 1 x Banana plug lead 50 cm, red; • 1 x Banana plug lead 50 cm, black; • 2 x Multimeters; • 1 x Instruction with worksheets

Physics in a Case 6: Electricity Part 2: • 1 x Iron core and transformer base; • 1 x 600-turn coil; • 1 x 1200-turn coil; • 2 x Single-pole double-throw switches (SPDT); • 1 x Relay; • 1 x Piezoelectric buzzer; • 2 x Direct-current electric motors; • 1 x Rubber tube; • 2 x Plastic propellers; • 1 x Motor model; • 1 x Analog voltmeter; • 1 x Potentiometer 100 Ω; • 2 x Lamp holder for E10; • 2 x Clip; • 1 x Container for two batteries; • 1 x Holder for a single battery; • 1 x Tilt switch; • 1 x Push-button switch; • 2 x Lamp E10 3.5 V; • 2 x Banana plug leads 25 cm, red; • 2 x Banana plug leads 25 cm, black; • 1 x Banana plug lead 50 cm, red; • 1 x Banana plug lead 50 cm, black; • 1 x Instruction with worksheets
