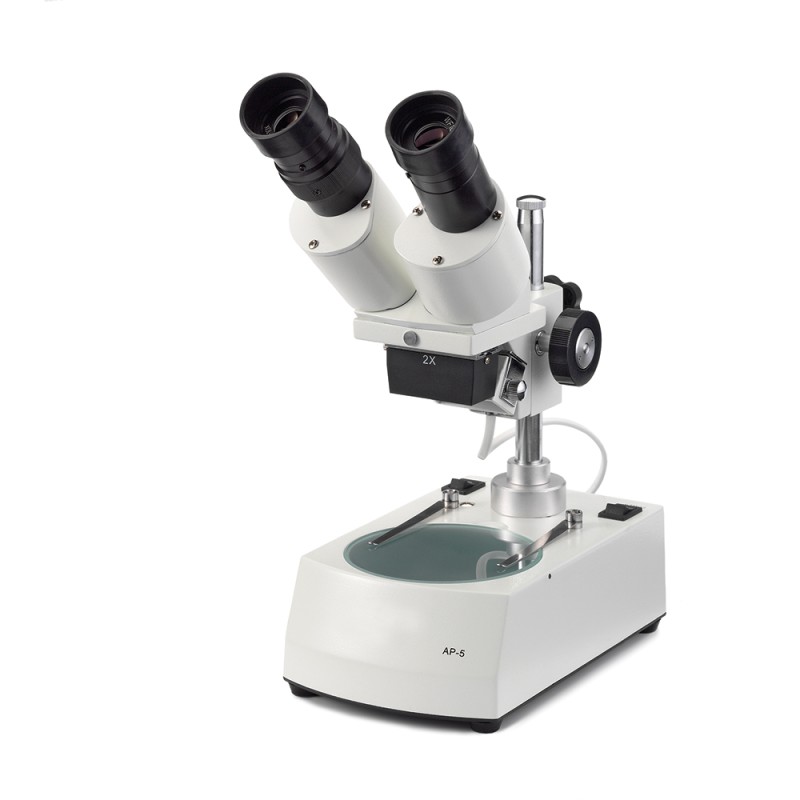

20x Illuminated Stereomicroscope with Dual Lighting

20x Illuminated Stereomicroscope with Dual Lighting

The illuminated stereo microscope features both transmitted and reflected light, enabling three-dimensional (also non-transparent) specimens to be viewed, as well as other samples beyond traditional microscope slides. It is invaluable for studying, for example, rock fragments, minerals, soil samples, insects, plant specimens (whole or partial), metals, and hobby specimens (coins, stamps), etc. Unlike traditional microscopes, no special preparations are required.

The stereoscopic effect for spatial specimens—for example, an oval, textured rock—provides a crisp image of both the upper and lower parts. This is accessible to nearly everyone thanks to the diopter adjustment on one eyepiece, which is important when there is an uneven refractive error between the eyes.

Illumination by reflected and transmitted light—the specimen is lit from above and/or below—this is particularly useful for specimens that are at least partially transparent (transmitting light) as well as dark and highly irregular ones.

Without illumination, the microscope can be used as a conventional stereomicroscope without lighting. Dimensions: 19.5 x 11.5 x 36 cm (H).

Parameters and equipment of the microscope:

• Wide-field eyepieces WF10x/20 with oculars and diopter adjustment on one eyepiece;
• Interpupillary distance: 55-75 mm;
• Eyepiece tilt: 45°;
• Objective: 2x (exchangeable);
• Magnification: 20x;
• Field of view: 10 mm;
• Mains power (230V);
• Bottom and top illumination (transmitted and reflected) 12V/10W, built-in with transformer in the base;
• Separate power and illumination switches;
• Included spare bulb and fuse.

The base/stand is equipped with:

• Spring-loaded clamps for mounting the specimen;
• A large (9.5 cm diameter) double-sided black-and-white reversing plate;
• A large (9.5 cm diameter) transparent plate (for bottom, transmitted illumination).

Optional equipment (to be purchased):

• Objectives 1x, 3x, 4x, 6x;
• Wide-field eyepieces WF5x, WF15x, WF20x.

5-year warranty.
