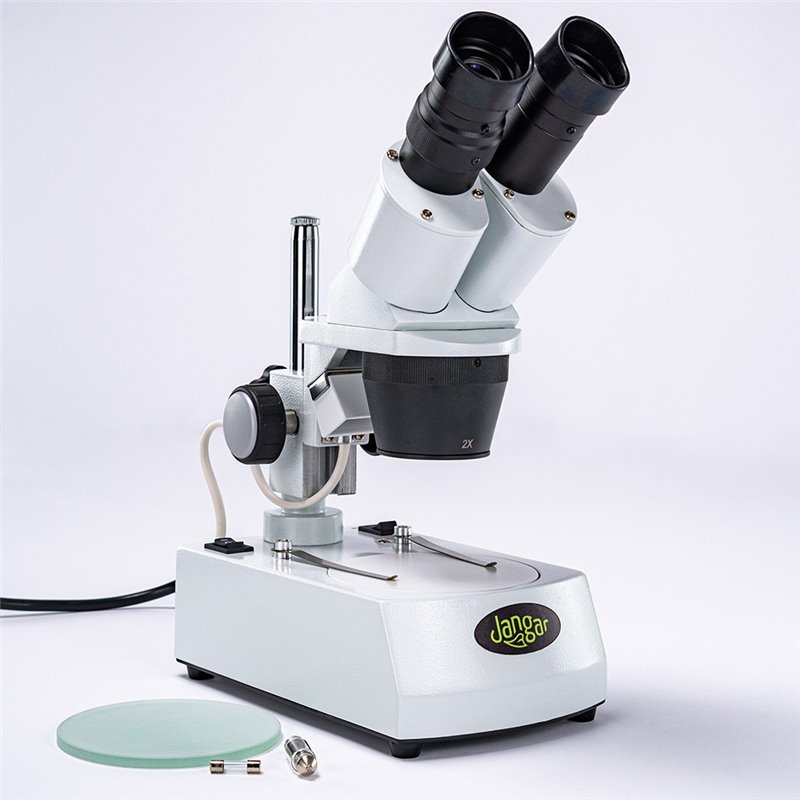

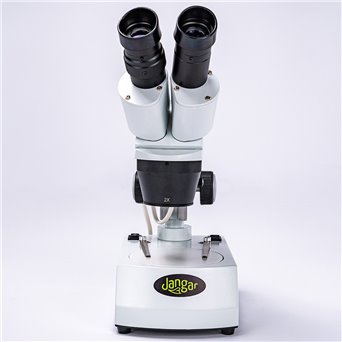

Stereomicroscope 20x/40x, illuminated (top and bottom lighting)

Stereomicroscope 20x/40x with top and bottom illumination

Stereomicroscope with top and bottom illumination (transmitted and reflected light) for viewing three-dimensional (also non-transparent) natural samples and objects other than microscope slides. Indispensable for studying, for example, rock fragments, minerals, soil samples, insects, plant specimens (whole or parts), metals, and hobby items (coins, stamps), etc. Unlike traditional microscopes, no special slides are required. The stereoscopic effect (for three-dimensional specimens—e.g., an oval, rough rock surface)—provides a clear image of both the upper and lower parts and is accessible to almost everyone thanks to the focus adjustment on one eyepiece (important for an uneven refractive error of the two eyes). Illumination by reflected and transmitted light – the specimen is lit from above and/or below – is useful for specimens that are at least partially transparent (transmitting light) and for dark and very irregular samples. Without illumination the microscope can be used as a traditional, non-illuminated stereomicroscope. Magnifications: 20x and 40x, adjustable by turning a dial (no manual objective changes!). Dimensions: 19,5 x 11,5 x 36 (H) cm.

Parameters and equipment of the microscope:

• wide-field WF10x/20 eyepieces with eyecups and diopter adjustment on one eyepiece;
• interpupillary distance (eye spacing): 55-75 mm
• eyepiece tilt: 45°
• objectives: 2x and 4x built into the rotating head
• magnification: 20x and 40x
• field of view: 10/5 mm
• mains power (230V)

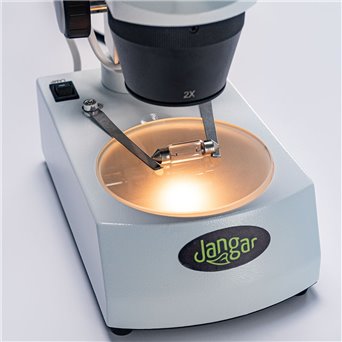

• top and bottom illumination (transmitted and reflected) 12V/10W, built-in with transformer in the base;
• power switch

Base-table equipped with:

• spring-loaded clamps to hold the specimen
• double-sided reversible black-and-white plate
• transparent plate (for bottom, transmitted illumination)

Optional accessories (additional purchase):

• wide-field eyepieces WF5x, WF15x, WF20x.

5-year warranty.
