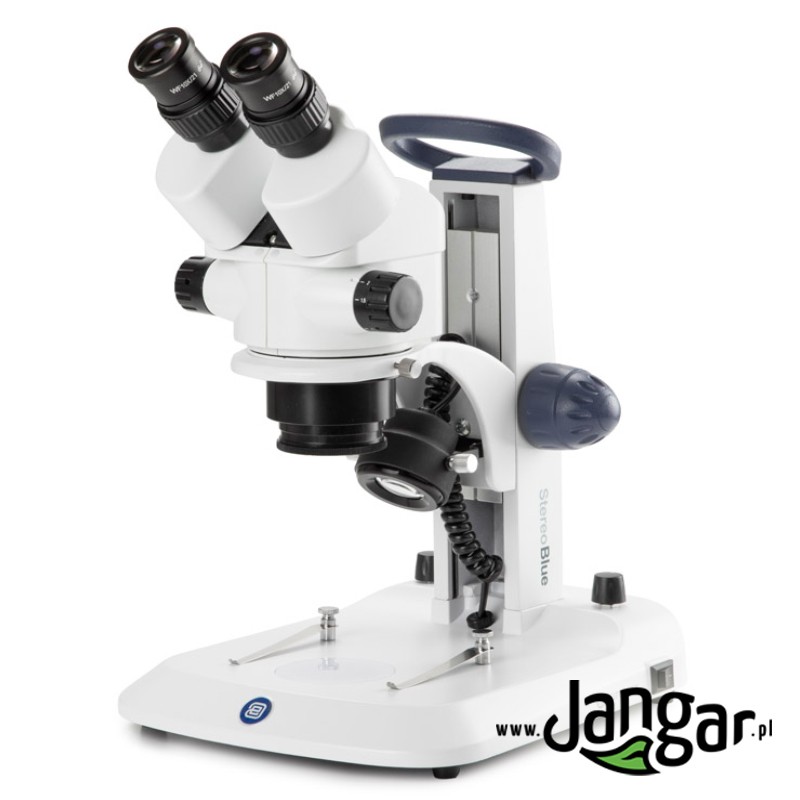

Stereoscopic Zoom Microscope 7x-45x LED Illumination Top and Bottom Lighting

Stereo Zoom Microscope 7x-45x LED Illumination Top and Bottom Lighting

Modern stereoscopic microscope with illumination by both reflected and transmitted light — the specimen can be lit from above and/or from below. Magnification (continuous) from 7x to 45x, adjustable by a knob (WF 10x eyepieces and 0.7x...4.5x zoom objectives). Additionally, economical dual LED illumination (3W) with independent intensity control, an ergonomic carrying handle, and a 360° rotatable binocular head make this microscope ideal for demanding users.

As with other stereo microscopes, it is used to observe three-dimensional (also non-transparent) natural specimens and objects other than microscope slides. It is invaluable for studying, for example, fragments of rocks, minerals, soil samples, insects, plant specimens (whole or parts), metals, circuits, and more. Unlike traditional microscopes, no special preparations are required. The stereoscopic effect (for spatial specimens — e.g., oval, rugged rock — provides a clear image of both the upper and lower parts) is accessible to almost everyone thanks to the focusing adjustment of one eyepiece (important in the case of unequal refractive errors of both eyes). Dimensions: 26.5 x 22 x 34 cm (H).

Specifications and equipment of the microscope:

• WF10x/20 mm wide-field eyepieces with eyecups and diopter adjustment on a single eyepiece;
• Interocular distance (pupil distance) between observers: 55-75 mm;
• Eyepiece tilt: 45°;
• Binocular head: rotatable 360°;
• Objectives: 0.7x…4.5x zoom;
• Magnification: 7x…45x;
• Field of view: from 28.5 mm to 4.5 mm;
• Working distance: 100 mm;
• LED illumination (3W) lower and upper (transmitted and reflected);
• Independent regulation of illumination intensity;
• Ergonomic carrying handle;
• Supplied with antifungal treated optical parts.

Base stage equipped with:

• Spring-loaded clamps to hold or secure the specimen;
• Two-sided reversible black-and-white plate;
• Transparent plate for bottom (transmitted) illumination.

Optional equipment (sold separately):

• Wide-field eyepieces WF 5x/18, WF 15x/15 or WF 20x/10.

5-year warranty.
