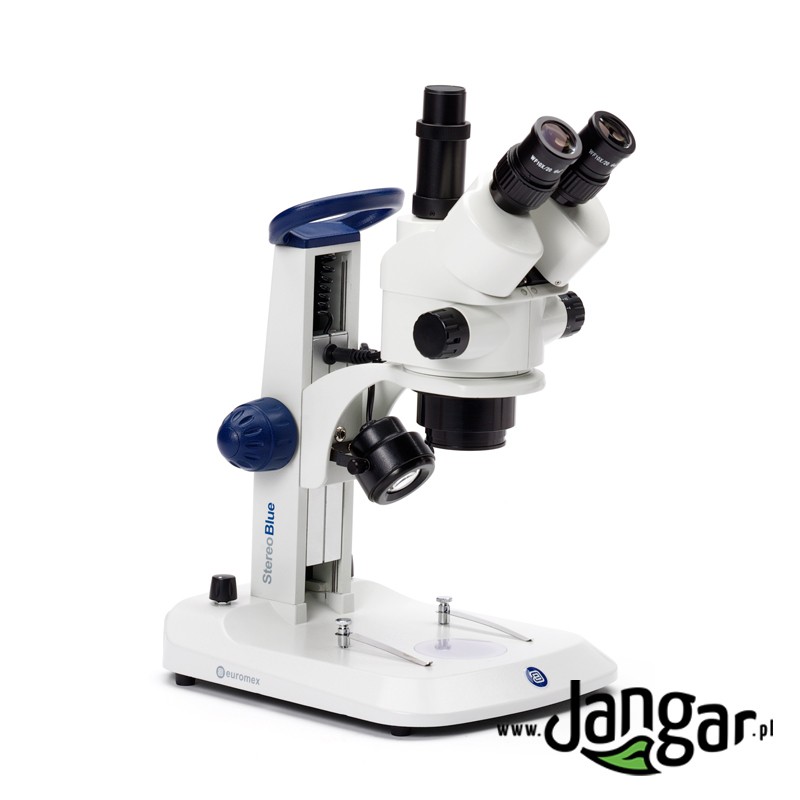

Stereo Microscope Zoom 7x–45x with LED Illumination, Trinocular Head

Stereo Microscope Zoom 7x–45x with LED Illumination, Trinocular Head

Modern, stable, trinocular stereo microscope illuminated by reflected and transmitted light — the specimen or object can be illuminated from above and/or below. It is suitable for independent connection of a microscope camera or a photographic camera. Magnification (continuous) from 7x to 45x, adjusted with a knob (WF 10x eyepieces and 0.7x…4.5x zoom objectives).

Additionally, economical dual LED illumination (3W) with independent intensity control, an ergonomic carrying handle, and a 360° rotatable trinocular head make this microscope ideal for the most demanding users.

As with other stereo microscopes, it is used to view three-dimensional (also non-transparent) specimens beyond microscope slides. Invaluable for studying, for example, rock fragments, minerals, soil samples, insects, plant specimens (whole or parts), metals, circuits, and more. Unlike traditional microscopes, no special preparations are required. The stereoscopic effect for three-dimensional specimens — for example, an oval, rough rock — provides a clearly visible image of both the upper and lower parts and is accessible to almost everyone thanks to the focus adjustment on one eyepiece (important for uneven refractive errors of the two eyes).

Dimensions: 26.5 x 22 x 34 cm (H).

Microscope specifications and equipment

• WF10x/20 mm wide-field eyepieces with eyecups and dust caps
• Diopter adjustment on both eyepieces
• Interpupillary distance: 55–75 mm
• Eyepiece tilt: 45°
• Third eyepiece for independent connection of a microscope camera or a camera
• Trinocular head: rotatable 360°
• Objectives: 0.7x…4.5x zoom
• Magnification: 7x…45x
• Field of view: 28.5 mm to 4.5 mm
• Working distance: 100 mm
• LED illumination (3W) bottom and top (transmitted and reflected)
• Independent on/off switches and illumination intensity controls
• Supplied with anti fungal protected optical parts
• Ergonomic carrying handle

Base and stage features

• Spring-loaded clamps to hold or secure the specimen
• Double-sided reversible black-and-white plate
• Transparent plate for bottom transmitted illumination

Optional equipment (to be purchased)

• Wide-field eyepieces WF 5x/18, WF 15x/15 or WF 20x/10

5-year warranty.
