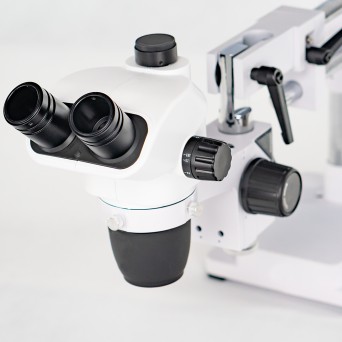

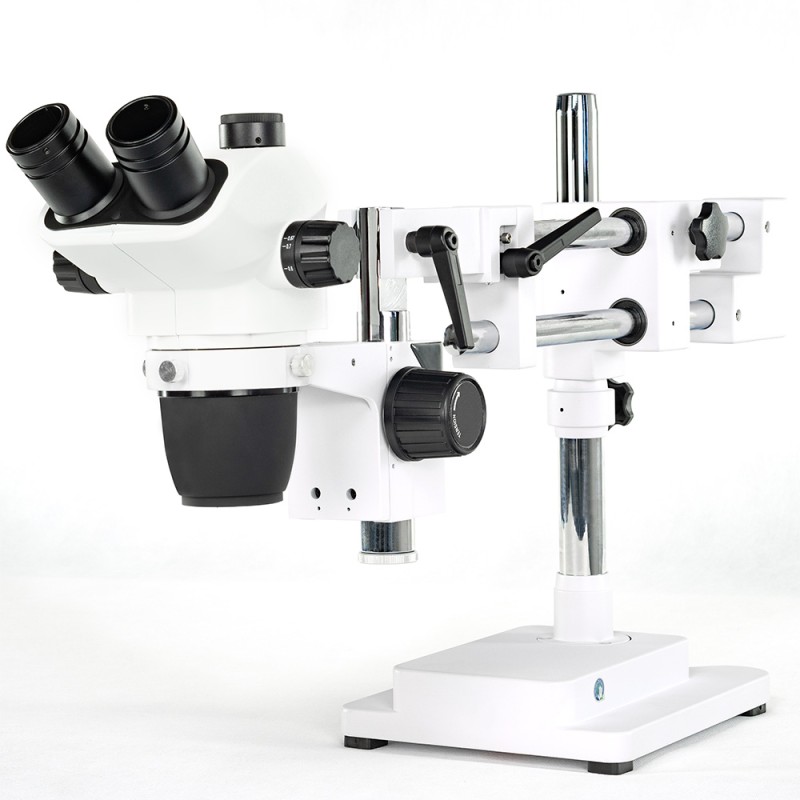

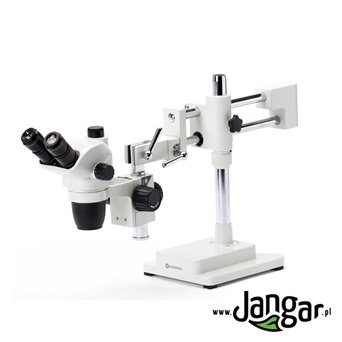

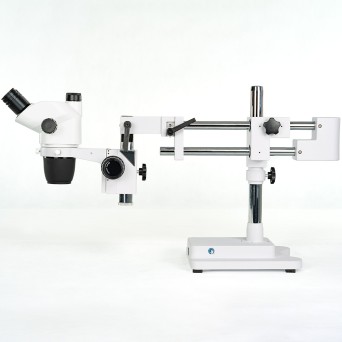

Stereomicroscope zoom 6.67x-45x, trinocular, arm-mounted tube

Stereomicroscope zoom 6.67x-45x, trinocular, arm-mounted tube

A trinocular stereo microscope with smooth magnification adjustment and a trinocular eyepiece head mounted on a double, adjustable arm with an extendable tube. The tube on a special arm allows studying delicate fragments as well as very large or heavy objects without the need to move or rotate them.

Designed for independent connection of a microscope camera or a digital camera. Magnification (continuous) from 6.67x to 45x, adjusted by a knob (eyepieces WF 10x/22 mm and zoom objectives 0.67x to 4.5x).

As with other stereo microscopes, it is used to view three-dimensional (also non-transparent) natural specimens and beyond prepared slides. It is invaluable for studying e.g. rock fragments, minerals, soil samples, insects, plant specimens (whole or parts), metals, circuits, and more. Unlike traditional microscopes, no special preparations are required. The stereoscopic effect for spatial specimens – for example an oval, rough rock – provides a clearly visible image of both the upper and lower parts, accessible to almost everyone thanks to focus adjustment on one of the eyepieces (important for uneven refractive error of the two eyes).

Dimensions: 31 x 25.5 x 40 cm (H).

Parameters and equipment of the microscope:

• eyepieces: WF10x/22 mm wide-field
• diopter adjustment on both eyepieces +/- 5 diopters;
• interpupillary distance: 54-75 mm
• eyepiece tilt: 45°
• third eyepiece for independent connection of a microscope camera or a photographic camera
• trinocular head
• double-armed stand, adjustable
• objectives: 0.67x to 4.5x zoom
• magnification: 6.67x to 45x
• field of view: 33 mm to 4.9 mm
• working distance: 110 mm
• supplied with antifungal-treated optical parts

10-year warranty.
