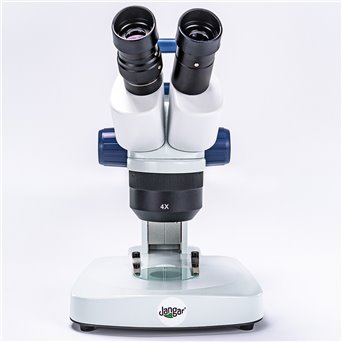

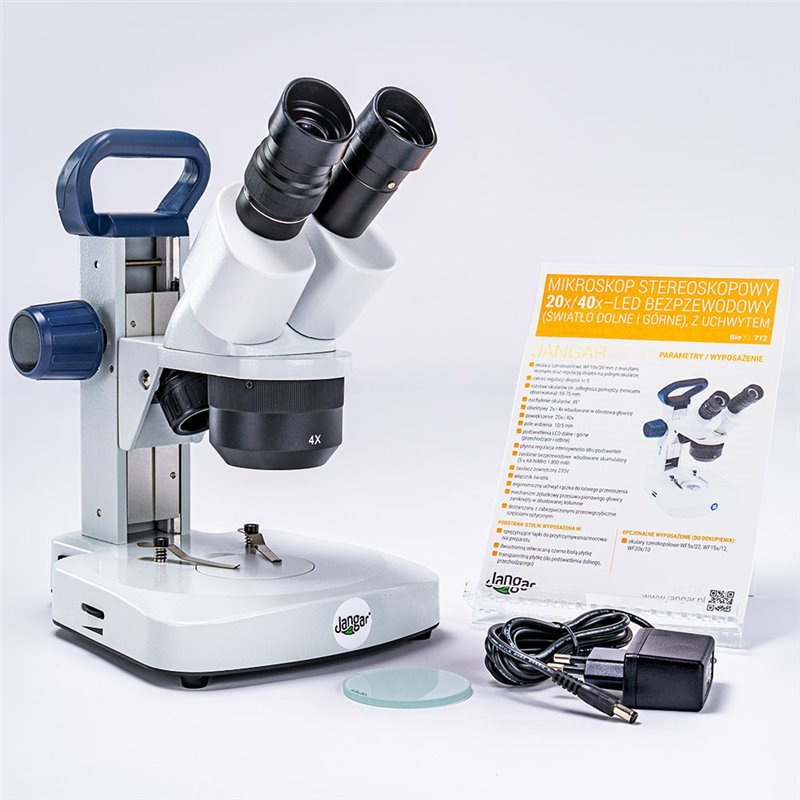

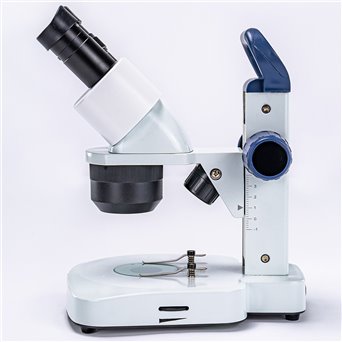

Wireless Stereo Microscope 20x/40x LED with Bottom and Top Illumination, Carrying Handle

Wireless Stereo Microscope 20x/40x LED with Bottom and Top Illumination

The stereoscopic microscope features a modern design with a comfortable carrying handle and the option of wireless operation (rechargeable batteries).

Illumination with bottom and top LED lights (transmitted and reflected) can be used together or separately, with smooth brightness control (independent adjustment of each illumination).

Magnifications 20x and 40x are changed by rotating the revolving head.

Powered by built-in 1,800 mAh batteries; an external 230V power adapter is also included.

An ergonomic carrying handle completes the description of this modern microscope.

Designed for observing three-dimensional (also non-transparent) natural specimens as well as many ready microscope slides on glass slides (thanks to the special design of the lower illumination).

Indispensable for studying rock fragments, minerals, soil samples, insects, plant specimens (whole or parts), metals and many hobby specimens (coins, stamps), as well as many microscope preparations. Unlike traditional microscopes, specialized preparations are not necessarily required.

The stereoscopic effect (for spatial specimens—for example, an oval, rough rock—provides a clear image of both the upper and lower parts) is accessible to practically everyone thanks to the focus adjustment of one eyepiece (important in case of uneven refractive errors between both eyes).

Illumination by reflected and transmitted light – the specimen is illuminated from above and/or below – is useful for specimens that are at least partially transparent (transmitting light) as well as dark and very irregular.

The microscope enables wireless operation thanks to built-in rechargeable 1,800 mAh batteries. Dimensions: 22 x 17.5 x 30 cm (H).

Specifications and equipment of the microscope

• WF10x/20 mm wide-field eyepieces with eyecups and diopter adjustment on one eyepiece,
• diopter adjustment range +/-5
• Interpupillary distance: 55-75 mm
• Eyepiece tilt: 45°
• Objectives: 2x and 4x built into a rotating head
• Magnifications: 20x and 40x
• Field of view: 10/5 mm
• LED bottom and top illumination (transmitted and reflected)
• Smooth adjustment of brightness for both illuminations
• Antibacterial coating APL*
• Wireless power: built-in batteries (3 x AA NiMH) 1,800 mAh
• External power supply 230V
• Light switch
• Ergonomic carrying handle for easy transport
• Gear mechanism for vertical movement of the head enclosed in a guarded column
• Supplied with antifungal-treated optical components

Base/stage equipped with:

• Spring-loaded clips to hold/mount the specimen
• Double-sided reversible black-and-white plate
• Transparent plate (for transmitted bottom illumination)

Optional equipment (sold separately):

• WF5x/22, WF15x/12, WF20x/10 wide-field eyepieces

*APL (ANTIBACTERIAL PROTECTION LAYER) is a revolutionary coating applied to the parts of our microscopes most exposed to contact with microorganisms (including bacteria and mold).
