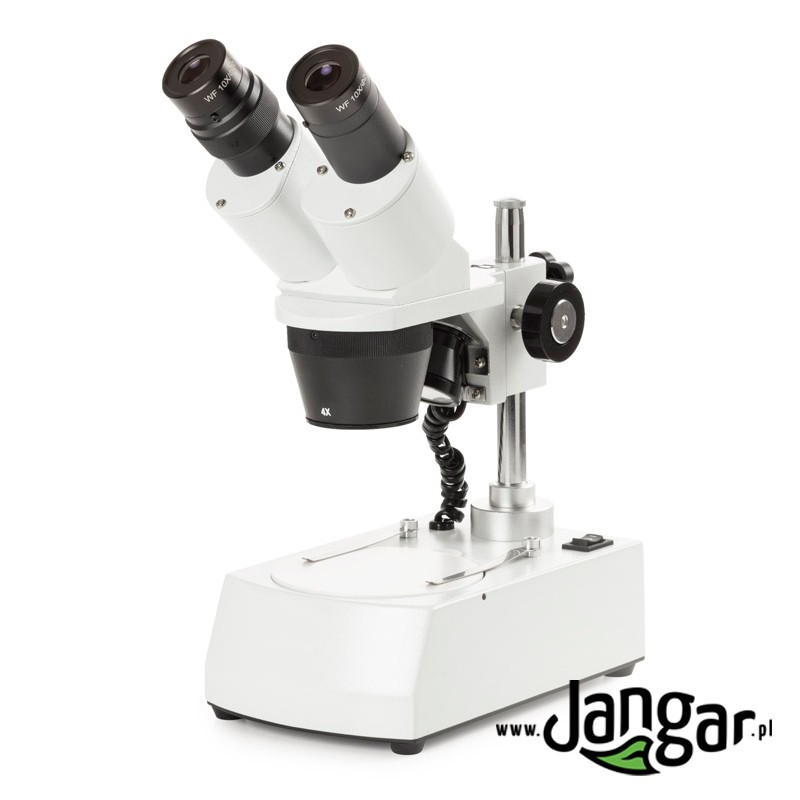

Stereomicroscope 20x/40x LED with Bottom and Top Illumination

Stereomicroscope 20x/40x LED with Bottom and Top Illumination

A stereo microscope with LED illumination from both bottom and top (transmitted and reflected light), designed for viewing three-dimensional specimens, including non-transparent natural samples and beyond traditional microscope slides. Indispensable for studying rock fragments, minerals, soil samples, insects, plant specimens (whole or parts), metals, and hobbyist specimens (coins, stamps), etc. Unlike traditional microscopes, no special preparations are required. The stereoscopic effect for spatial specimens — e.g., an oval, rough rock surface — provides a clear view of both upper and lower parts, accessible to almost anyone thanks to focusing adjustment on one eyepiece (important for uneven vision defects of both eyes).

Magnifications: 20x and 40x, selectable by rotating the revolver turret (no need to manually swap objectives!).

Illumination by reflected and transmitted light — the specimen is lit from above and/or below — useful for specimens that are at least partly transparent (transmitting light) as well as dark and highly irregular ones.

The microscope enables wireless operation thanks to the included AA battery charger, and when powered by three AA NiMH 200 mA rechargeable batteries, the illuminator provides 35 hours of continuous operation.

Dimensions: 19.5 x 11.5 x 36 cm (H).

Specifications and equipment of the microscope

• Wide-field WF10x/20 eyepieces with oculars and diopter adjustment on one eyepiece;
• Interocular distance (pupil distance): 55-75 mm
• Eyepiece tilt: 45°
• Objectives: 2x and 4x built into the rotating head
• Magnification: 20x and 40x
• Field of view: 10/5 mm
• LED illumination bottom and top (transmitted and reflected)
• Wireless power: includes 3 AA NiMH rechargeable batteries, 200 mA (35 hours continuous operation)
• Included battery charger
• Light switch

The base/table includes:

• Spring-loaded clamps to hold/secure the specimen
• Double-sided reversible black-and-white plate
• Transparent plate (for bottom, transmitted illumination)

Optional equipment (to purchase separately):

• Wide-field eyepieces WF5x, WF15x, WF20x

5-year warranty.
