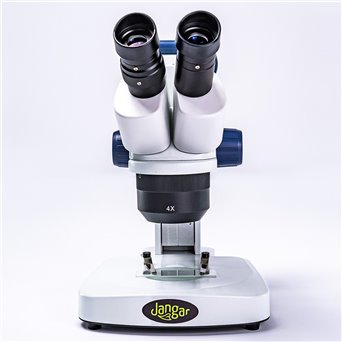

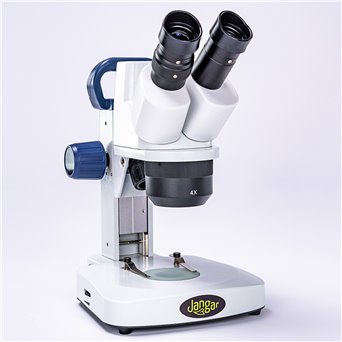

Stereoscopic Microscope 10x/20x/40x - LED Digital 5 MP, Illuminated (bottom and top light)

Stereoscopic Microscope 10x/20x/40x - LED Digital 5 MP, Illuminated (bottom and top light)

Exceptional in that it is a DIGITAL stereoscopic microscope with a built-in 5 MP USB2 digital camera connected to a computer via a USB port. It enables individual viewing of microscopic slides and three-dimensional objects, as well as displaying them on a computer screen or interactive whiteboard, while saving images to files and performing digital processing. Compatible with all widely used Windows systems 7, 8, 10, in both 32-bit and 64-bit editions, and Mac OS. The built-in camera resolution also makes it possible to display the microscope image on an interactive whiteboard as well.

Illuminated with LED diodes for bottom (transmitted) and top (reflected) illumination, used together or separately with smooth adjustment of the light intensity. Magnifications 20x and 40x are changed by turning the revolving head. Powered by built-in 1,800 mAh batteries. An ergonomic carrying handle completes the description of this modern microscope.

Designed for viewing three-dimensional (also non-transparent) natural specimens as well as many ready-made microscope slides (thanks to the special bottom illumination arrangement).

Indispensable for studying, for example, rock and mineral fragments, soil samples, insects, plant specimens (whole or in part), metals, and hobby specimens (coins, stamps), as well as many microscope slides. Unlike traditional microscopes, no special preparations are necessary. The stereoscopic effect (for three-dimensional specimens – e.g., oval, rough rocks) provides a similarly clear image of both the upper and lower parts, achievable by adjusting the focus of one eyepiece (important for unequal refractive errors of both eyes). Transmitted and reflected illumination – the specimen is lit from above and/or below – is advantageous for specimens that are at least partially transparent (light-transmitting) and for dark and highly irregular specimens. The microscope enables wireless operation thanks to built-in rechargeable batteries 1,800 mAh. Dimensions: 22 x 17.5 x 30 cm (H).

Specifications and equipment of the microscope:

• built-in digital 5 MP USB2 camera
• wide-field eyepieces WF10x/20 with oculars and diopter adjustment on one eyepiece;
• interpupillary distance: 55-75 mm
• eyepiece tilt: 45°
• lenses: 1x, 2x and 4x built into the rotating head
• magnifications: 10x, 20x and 40x
• field of view: 10/5 mm
• bottom and top LED illumination (transmitted and reflected)
• smooth regulation of the intensity of both illuminations
• antibacterial coating APL*
• wireless power supply: built-in batteries (3 x AA NiMH) 1,800 mAh
• external power supply 230V
• light switch
• ergonomic handle for easy transport
• supplied with antifungal-treated optical parts
• ImageFocus Plus software in Polish language compatible with Windows 7, 8, 10 (32- or 64-bit), Mac OS.

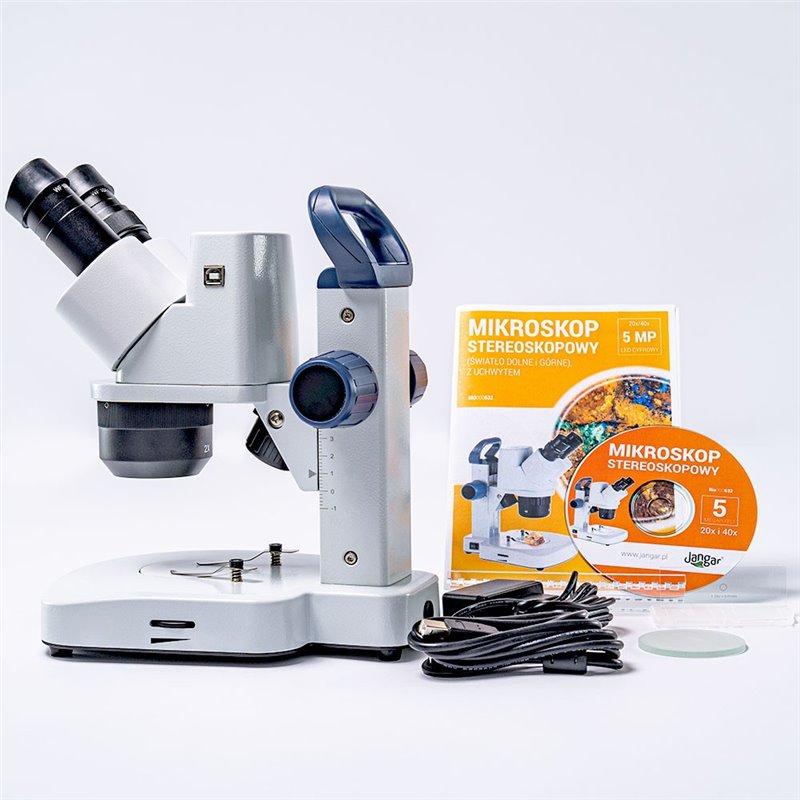

Base-stand equipped with:

• spring-loaded clips to hold/secure the specimen
• double-sided reversible black-and-white plate
• transparent plate (for bottom transmitted illumination)

Optional accessories (to purchase):

• wide-field eyepieces WF5x/22, WF15x/12, WF20x/10.

5-year warranty on the microscope.
2-year warranty on the camera.

*APL (ANTI-BACTERIAL PROTECTION LAYER) is a revolutionary coating applied to the parts of our microscopes most exposed to contact with microorganisms (including bacteria and mold).
