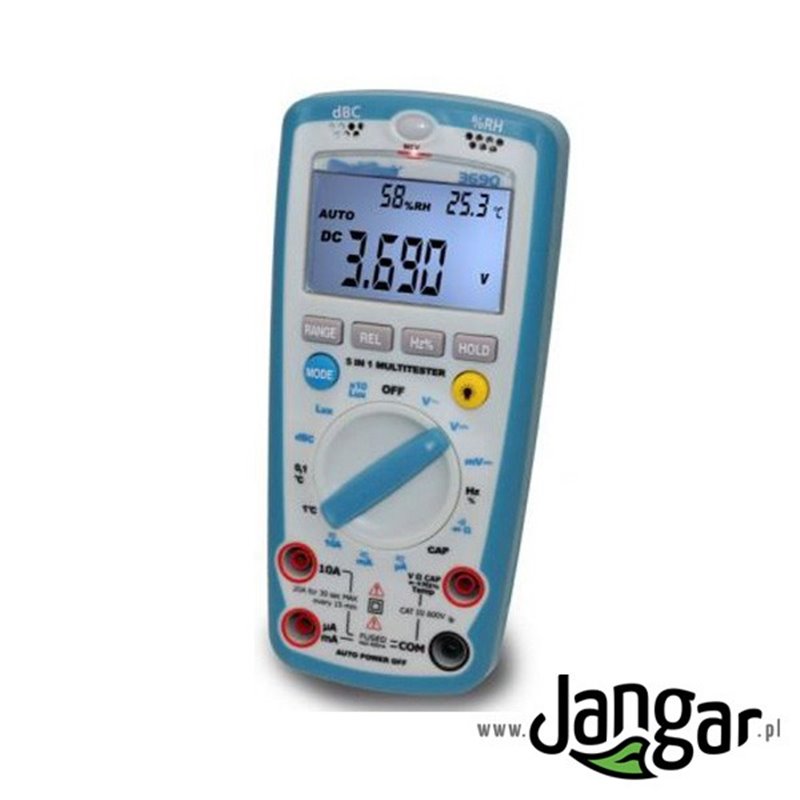

5-in-1 Multifunction Measuring Instrument

5-in-1 Multifunction Measuring Instrument

A digital device that combines the functions of a multimeter (DCV, ACV, DCA, ACA, Ohm) with a device for measuring sound level, illumination, humidity, and temperature.

Specifications

• Relative humidity: 33%...99%
• Ambient temperature: 0°C to 50°C; 0.1°C resolution; ±3% + 3°C
• Temperature (probe; thermocouple): -20 to +1300°C; 0.1°C; ±3% + 3°C
• Illumination: 4000/40000 Lux; ±5%
• Sound: 35–100 dB (30 Hz–10 kHz); C-weighting; ±5 dB at 94 dB
• DCV (DC voltage): 400 mV/4/40/400/600 V; 0.1 mV; ±1.0%
• ACV (AC voltage): 400 mV/4/40/400/600 V; 0.1 mV; ±1.0%; 50–400 Hz
• DCA: 400/4000 µA/40/400 mA/10 A; 0.1 µA; ±1.0%
• ACA: 400/4000 µA/40/400 mA/10 A; 0.1 µA; ±1.2%
• Ohm: 400 Ω / 4 / 40 / 400 kΩ / 4 / 40 MΩ; 0.1 Ω; ±1.5%

Safety: EN 61010-1; CAT III 600V. LCD display 15 mm, multi-level, with backlight. Powered by a 9 V battery. Dimensions: 78 x 170 x 48 mm. Weight: 335 g.
